Sintesi 24Vdc Chain Actuator Ultraflex UCS 200N

Ultraflex (UCS)
Code: SINTESI 24 Vdc
-35%
£ 95,87 £ 147,50
Prices excluding VAT
Are you looking for an actuator from the Ultraflex catalog that is not on our site? Contact us and ask for a quote.

Unavailable
Sintesi 24Vdc Chain Actuator Ultraflex UCS 200N

Two selectable strokes: 250 mm or 380 mm.

Three dovetail slides for an easy installation; the sliding fixing bracket is included in the package.

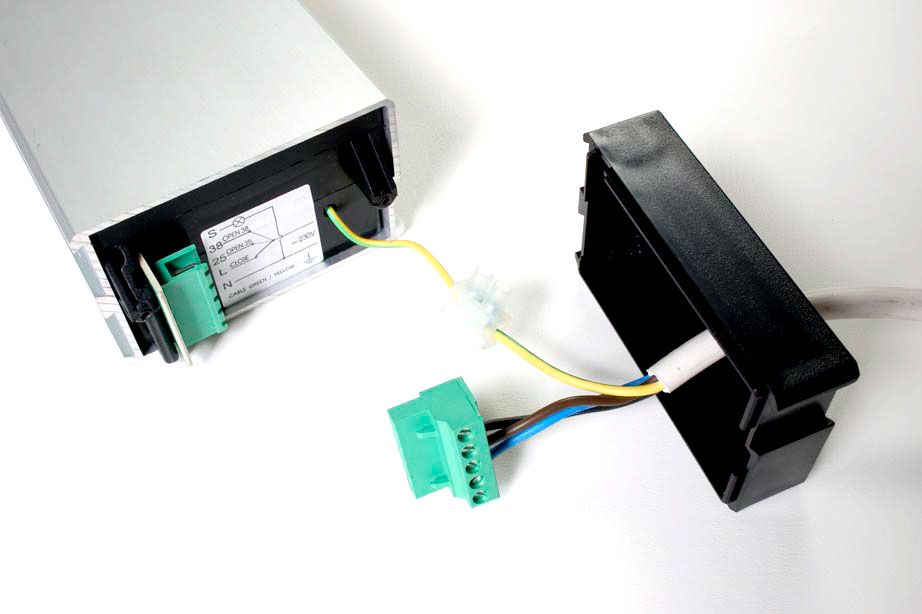

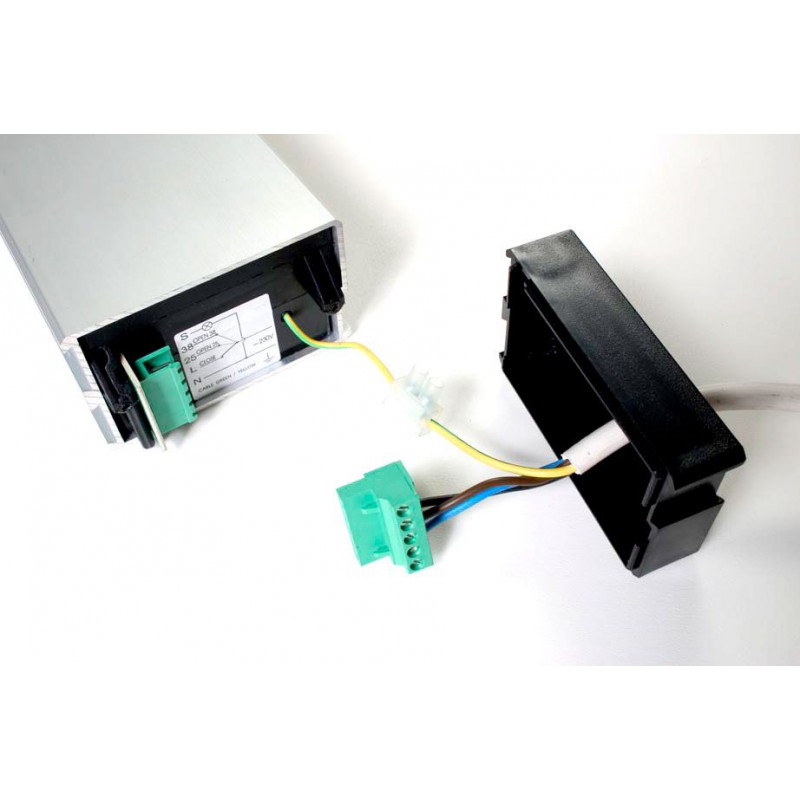

Exclusive system for electrical connection. The special removable plug allows a very quick and easy connection for the final test of the actuators on the building site.
In case of window with height less than 500 mm (for 250 mm stroke) and 800 mm (for 380 mm stroke), install pivoting brackets part No. 40560T.
For installation of two Sintesi on the same vent it is available a control coupling unit 230 Vac, part. No. 41089V.

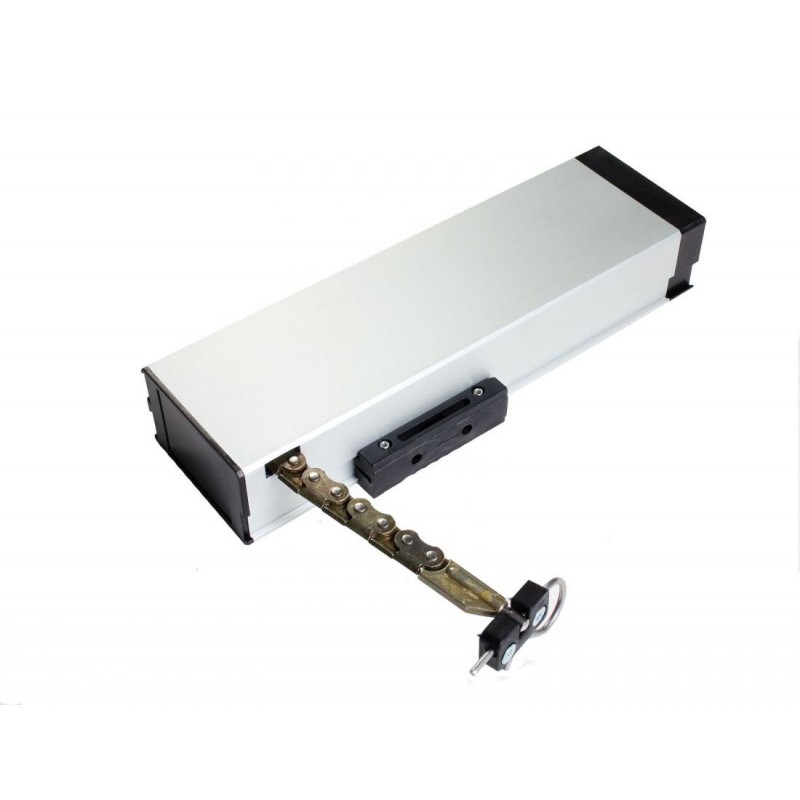

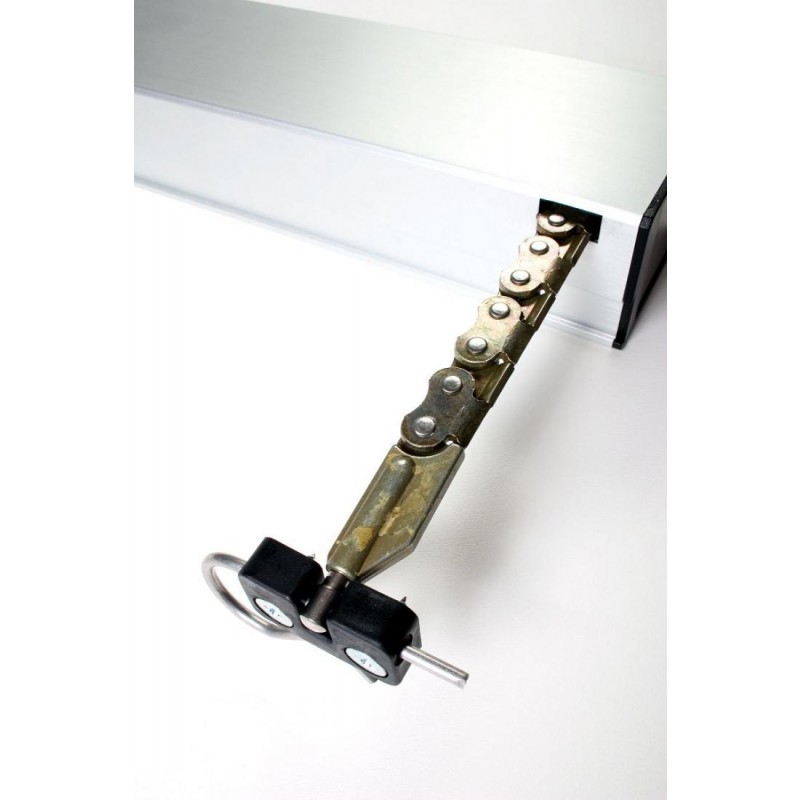

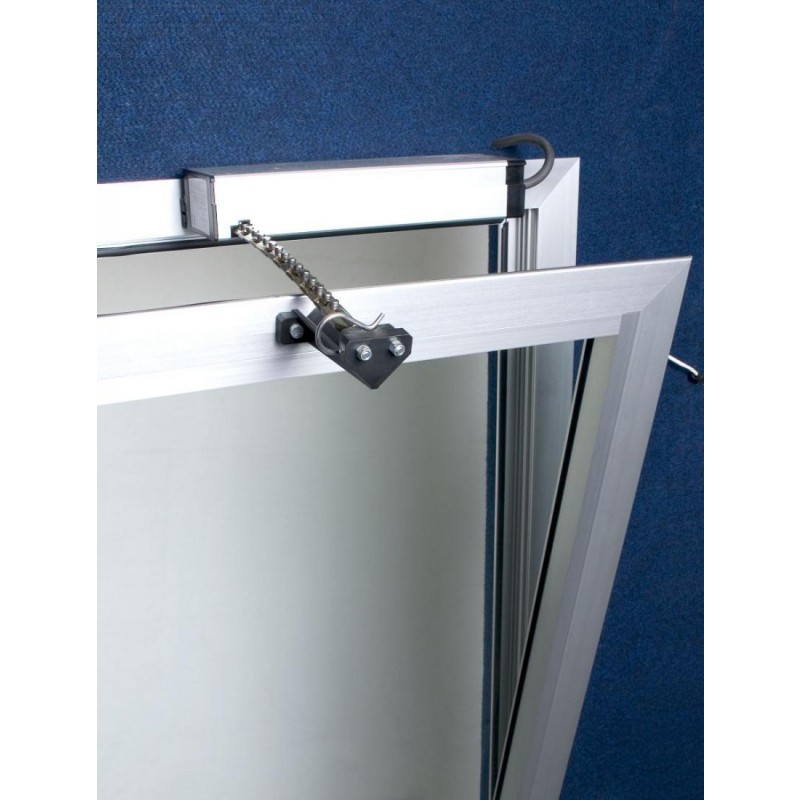

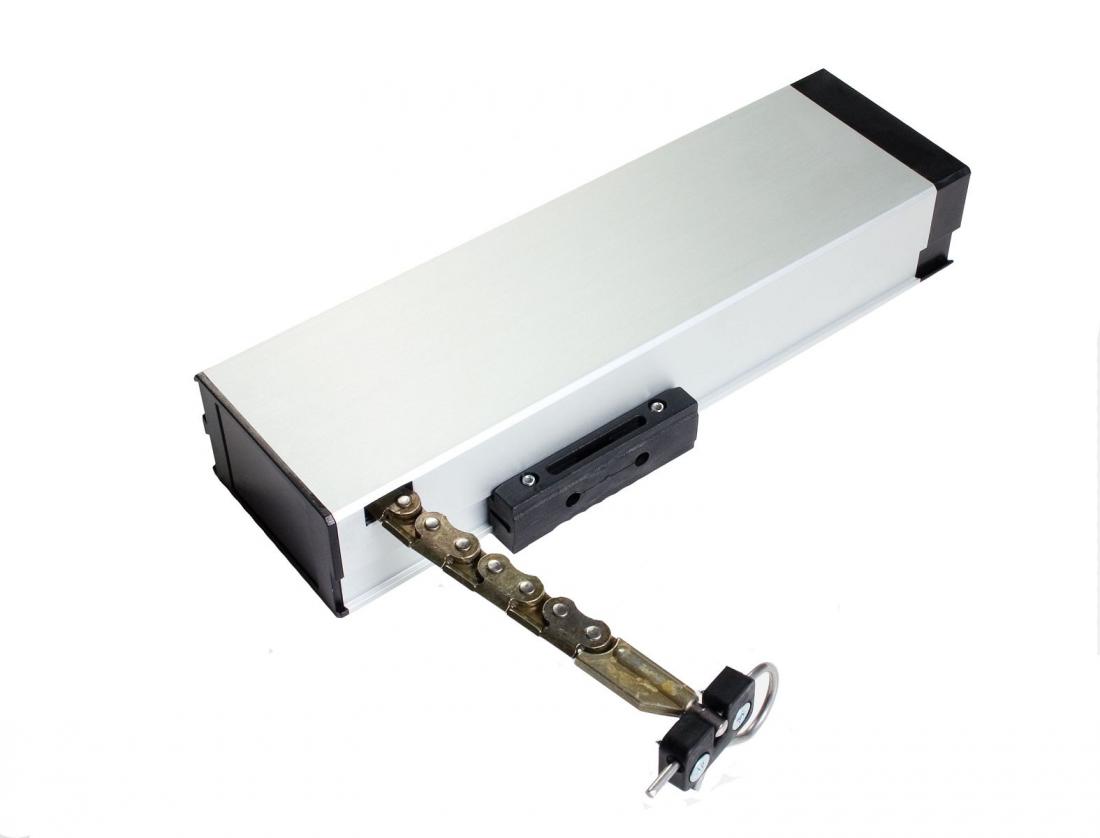

Sintesi Chain Window Actuator (200N) is a compact unit designed for smaller windows and vents.
Unit complete with adjustable opening stroke.

VOLTAGE SUPPLY    24 Vdc ± 10%
ELECTRIC CONNECTION   2 wires
STROKE   selectable 250/380mm
FORCE IN PUSH ACTION (stroke)   180 N (250mm) - 90 N (380mm)
FORCE IN PULL ACTION   200 N
SPEED   ~14 mm/s
CURRENT ABSORPTION (with max load)   1 A
PARALLEL CONNECTION   YES
LIMIT STOP   micro switches
SAFETY STOP   electronic
FEEDBACK SIGNAL   open/close
PROTECTION CLASS   IP 20

 PART NO.  MODEL  DESCRIPTION
 37127H  Sintesi 24 Vdc  Actuator Sintesi 24Vdc A SILVER ANODIZED
 37128K  Sintesi 24 Vdc  Actuator Sintesi 24Vdc B DARK BROWN ANODIZED
 37129L  Sintesi 24 Vdc  Actuator Sintesi 24Vdc W WHITE PAINTED RAL 9010

Included accessories: sliding plastic fixing bracket.

Accessories sold separately: bottom hinged window plastic bracket part No. 36665E, long sliding aluminium bracket part No. 37021U for heavy windows and smoke and heat extraction installation, Bottom hinged window bracket part No. 40157I for smoke extraction installation and heavy windows, Adjustable aluminium bracket for bottom hinged window part No. 37493H, aluminium dovetail pivoting bracket part No. 40560T, Chain tie-rod for special installation (for example wood or PVC window frame) part No. 81222C.
