Smart Gateway Iseo WIFI or Ethernet - Argo Connected Lock Device
The

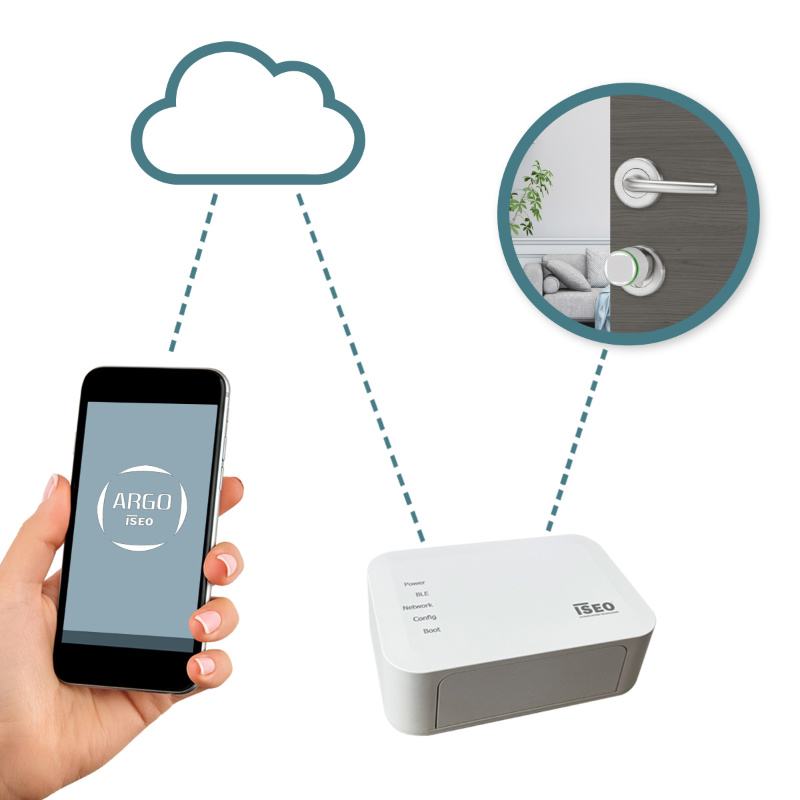

Iseo Smart Gateway connects the cloud (ISEO Argo Account) to the door lock.
This
connected lock gateway is able to relate to the cloud via a data connection and communicates with the lock installed on the door by means of Bluetooth Smart 5.0 Bluetooth Smart 5.0 technology.
You can buy the
Libra Iseo Argo electronic cylinder online on Windowo and have it work together with the Smart Gateway WIFI or in the Smart Gateway Ethernet version (select the variant you want).
The Smart Gateway can manage all the door locks present in its Bluetooth range (about 10 meters depending on the environmental conditions).
There are two versions of the Iseo Smart Gateway:
- Smart Gateway WIFI;
- Smart Gateway PoE Power over Ethernet.
Main functions Smart Gateway Iseo
- Data conversion (WIFI or Ethernet) to Bluetooth Smart 5.0;
- Desktop format with the possibility of wall mounting;
- Integrated Linux device;
- Power supply: USB C + 5VDC input power;
- Power consumption max. 10W;
- Select the version you want from those proposed (with or without accessories);
- Accessories that can also be purchased separately.
Features Smart Gateway Iseo WIFI or Ethernet
- WIFI Smart Gateway Functionality: WIFI data conversion to BLE 5.0 Dual Band WIFI at 2.4GHz and 5GHz;
- Smart Gateway Ethernet functionality: conversion from Ethernet data to BLE 5.0;
- Smart Gateway WIFI power supply: powered by USB C + 5VDC 2A (10W) input power, power cable option;
- Smart Gateway Ethernet Power: Requires IEEE 802.3af PoE Switch up to 15.4W, data transmission and power over CAT5e / CAT6 Ethernet cable. Power consumption max 10W, optionally powered by USB C +, input power 5VDC 2A (10W), power cable option;
- Dimensions: LxWxH 125x40x85 mm;
- Operating temperature: 0 C / + 50 C;
- Storage temperature: -25 C / + 75 C;
- Installation: desktop, wall mount option;
- Connection ports: USB C female - Ethernet TCP / IP 10/100 baseT;
- Visual indicators: Signaling LEDs: Power supply (white): ON = Power supply connected; BLE (white): ON = BLE transmission in progress; Network (white): ON = Gateway connected to the Cloud; Config (white): ON = Gateway from
- configure; Boot (red): ON = Gateway startup. CPU;
- Memory: ARM A7 based CPU module 512MB RAM, 8GB non-volatile eMMC flash memory;
- Operating System: Integrated Linux;
- Buttons: Reset (restart or factory mode status);
- OEM version: available for Argo integrators with SDK.
For solutions suitable for online and offline access control in more complex contexts, such as companies and organizations distributed in numerous locations, you can contact us and ask for a targeted quote.
Smart Gateway WIFI Iseo - Code 5E075524
- Double channel WIFI 2.4 Ghz and 5 GHz;
- Power supply and wall mounting option (accessories to be ordered separately).
Smart Gateway PoE Iseo - Code 5E075514
- Power over Ethernet;
- Power supply and wall mounting option (accessories to be ordered separately).
Power supply for Smart Gateway Iseo - Code 0000A00155
- IN = 100-240V50-60Hz 0.50A OUT = 5.0Vdc 2A (10W);
- 1.5m USB A to USB C cable.
Wall fixing kit for Iseo Smart Gateway - Code 0000A00154
- n. 1 wall fixing bracket;
- n. 1 Gateway fixing bracket;
- n. 2 Screws;
- n. 4 Screws with wall fixing plugs.
Argo from Remote - Iseo locks become even smarter
Discover the modern generation of
smart door lock devices equipped with Bluetooth Smart 5.0, also called Bluetooth Low Energy 5.0 or BLE 5.0 paired
with the Smart Gateway manage Argo from Remote . Use the Argo functionality at any time and from anywhere in the world.
BLE 5.0 technology allows the door lock to exploit
multiple simultaneous connections . For example, while a family member is opening locks with their smartphone, they can connect to the Smart Gateway for remote management by adding user rights or viewing events.
