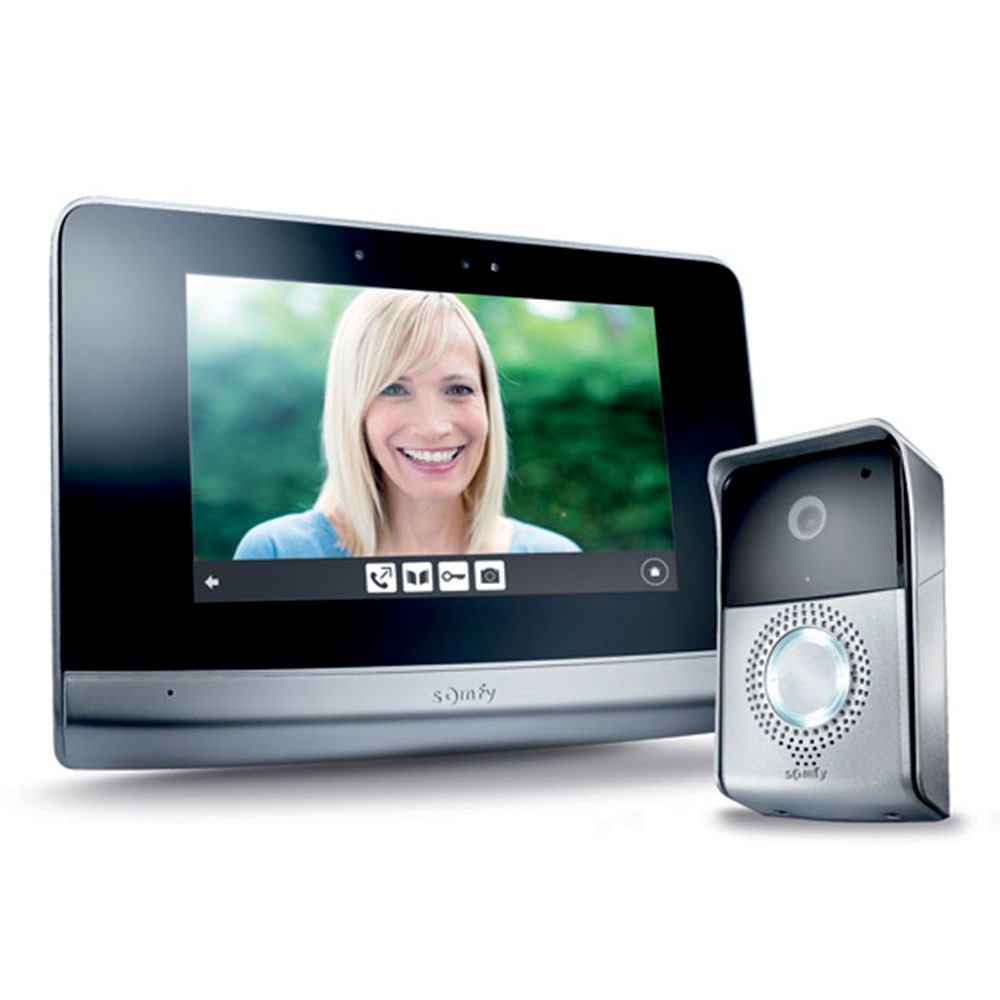

Somfy V500 Connected Touch Video Intercom Kit
Touch video intercom with wide-angle camera and image recording
The strengths of
visiophone V500 :
- touch screen and ergonomic interface;
- image recording and ringtone customization;
- gate and door opening from inside your home;
- internal and external temperature display;
- infrared LED night vision;
- wide angle room.
Somfy exclusive RTS remote control:
A wireless RTS remote control is integrated into the v500 monitor to be able to control 5 Somfy RTS motors or product groups simply from your video door entry unit!
Somfy V500 video door phone description

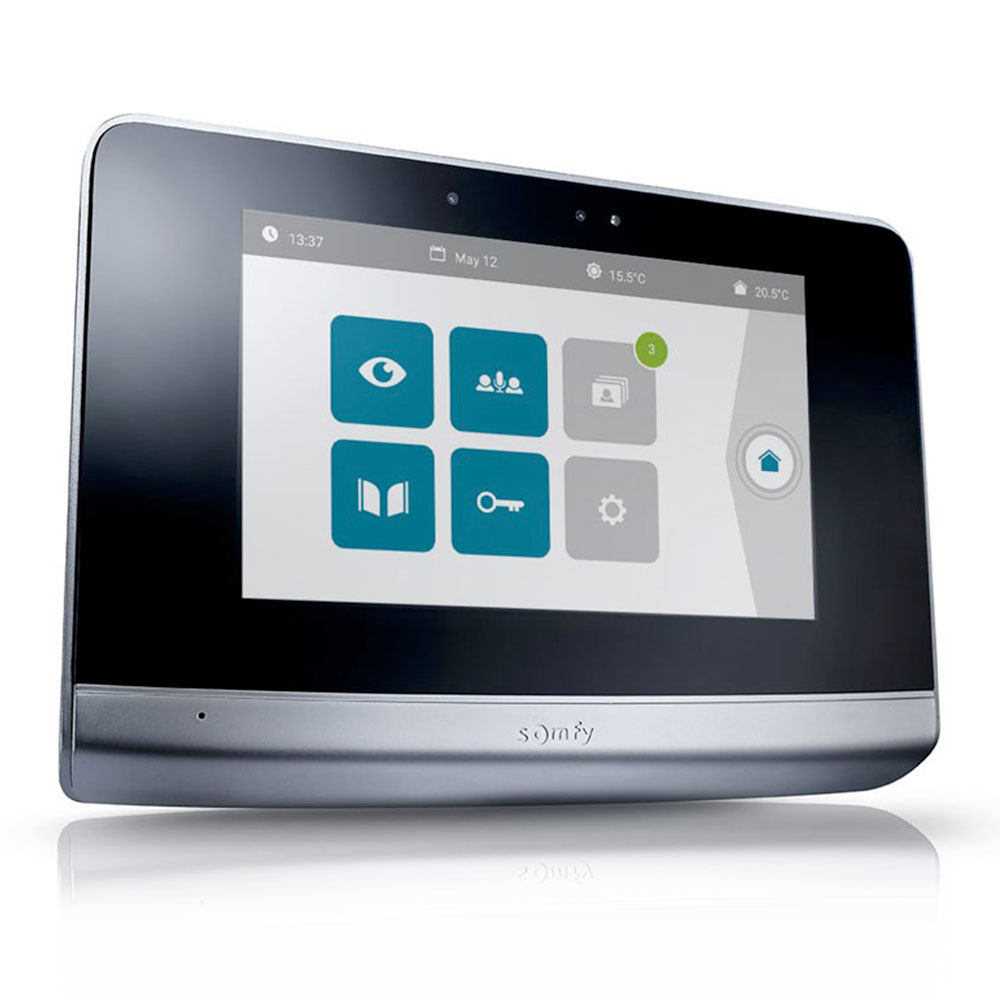

The Somfy V500 video door phone allows you to manage home accesses (gates, doors) via the 7 '' color touch screen with ergonomic interface.
Check your logins
Identify your guests thanks to the wide angle vision (H: 103 ° / V:> 60 °) even at night, thanks to the infrared LED night vision.
Furthermore, you will be able to record the images of the viewers (even those to which you have not answered) thanks to the photos that can be exported on micro SD card.
Intuitive and customizable
V500 is an easy-to-use and customizable video door phone.
Using a micro SD you can customize the intercom ringtone or know the temperature of your rooms (indoor and outdoor) simply by viewing them on the monitor.
Furthermore, thanks to its intercom function, you can extend the range of the video door entry unit by adding another screen on another floor of the house (not included in the kit).
Easy to install and program

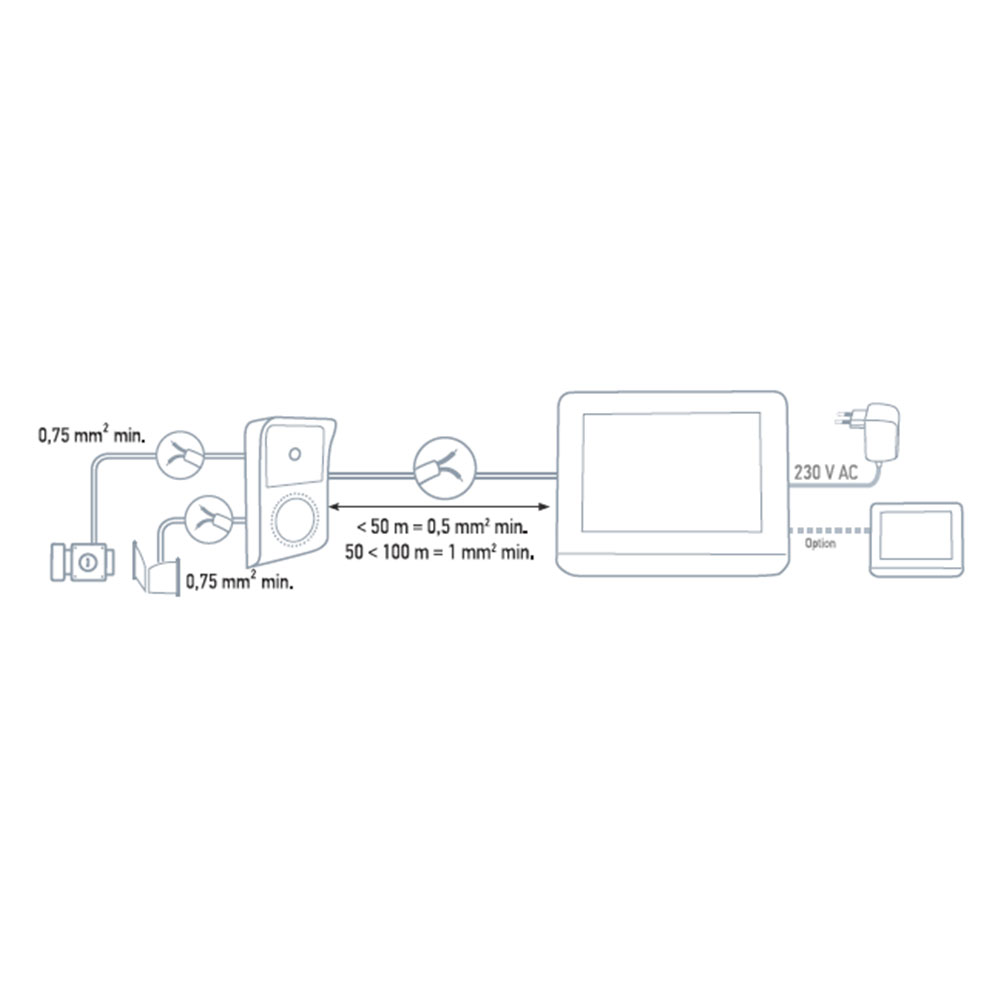

V500 can be installed with just two wires, using the existing wiring of the old intercom.
To program it you need to follow the guide that will accompany you step by step.
RTS remote control included
A wireless RTS remote control is integrated into the V500 video door phone monitor to manage 5 Somfy motorized products or groups of Somfy RTS products from the video door phone.
Advantages Somfy Touch video door phone
- 7 '' color touch screen with ergonomic interface;
- Ringtone customization via micro SD;
- Motion sensor for automatic activation;
- Recording of images;
- Temperature sensor;
- Manage up to 5 Somfy RTS products (gate, garage door, front door, roller shutters, lights, etc.);
- Connection to the push-button panel via two wires (up to 100 m);
- Ultra-resistant, vandal-proof and night vision external pushbutton panel;
- Possibility to add an additional monitor (sold separately).
Contents Somfy video door phone kit
- 1 internal monitor with wall support
- 1 power supply
- 1 external push button panel
- 1 micro SD card of 8 GB
- Batteries and screws
Installation of the Somfy V500 Connected Touch Video Doorphone Kit
Features Somfy V500 Connected Touch Video Intercom Kit
Internal monitor
- Screen size: 7 "inches
- Screen resolution: 800x 400pixels
- Settings: Ring volume, color, brightness, audio, doorbell, temperature, time and date
- Memory capacity: 8GB micro SD included
- Max. Communication period: 2 minutes
- Max. Distance between monitor and keypad: 100 m
- Power supply: 100-240V, 50 / 60Hz
- Operating temperature: from -10 ° C to + 55 ° C
- Radio remote control: Radio distance 200 m - Radio frequency RTS - 433.42 MHz
- Fixing: Facade - mounted with bracket
- Dimensions (W x H x D): 229.5 x 149.6 x 19.5 mm
Pushbutton
- Camera: V:> 62 ° / H: 103 ° - Infrared Led for night vision
- Label holder and button: Backlit
- Settings: Audio volume
- Material: Aluminum and plastic - Anti damage unit
- Fixing: On the facade - mounted with rainproof cover
- Dimensions (W x H x D): 103 x 165 x 54 mm
- Operating temperature: -from -20 ° C to + 55 ° C
