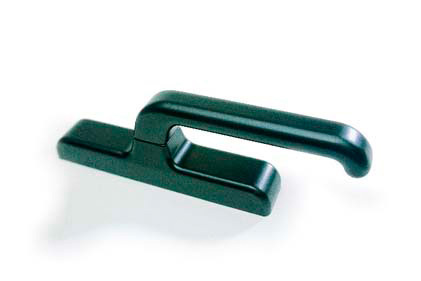

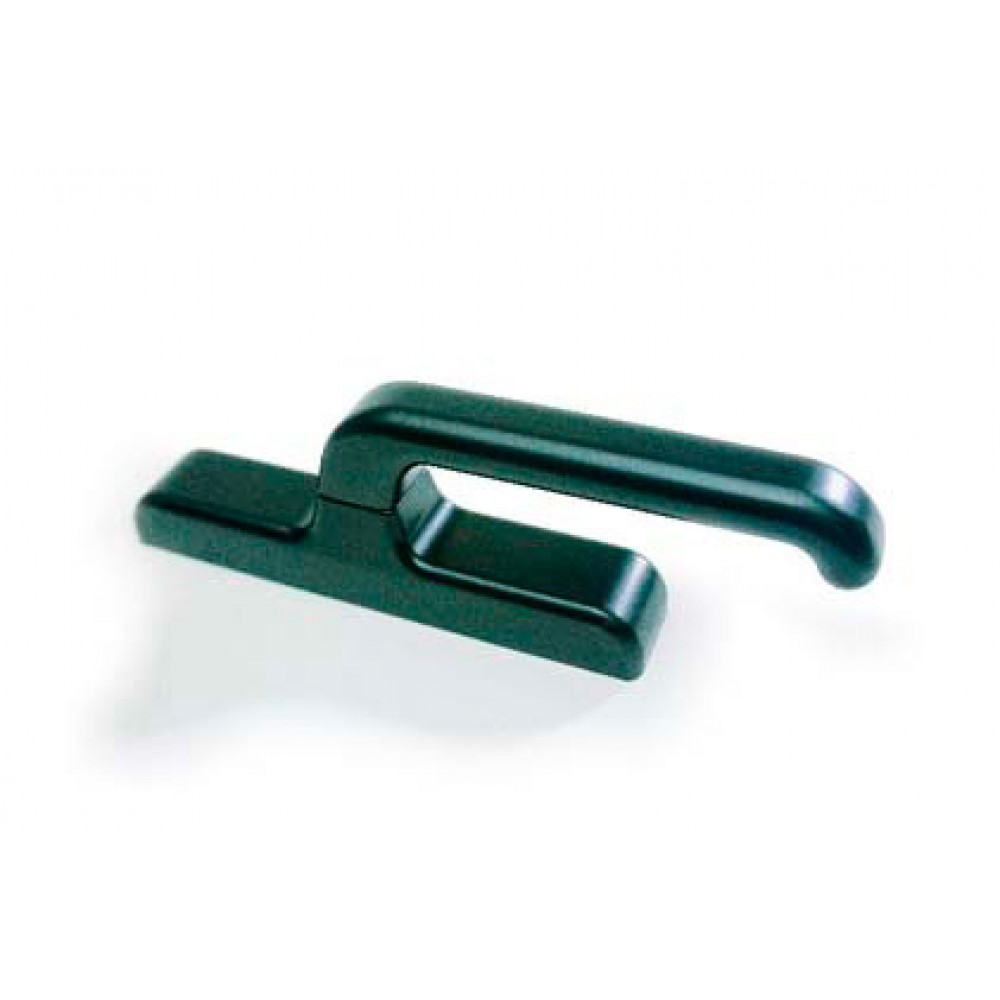

Supernova Giesse - Cremonese Window Handle - Internal Ambidextrous
Cremone bolt model Supernova Giesse - Accessory for window opening
Supernova ambidextrous cremone bolt version, for internal openings with 90° handle rotation and positioning click on opening and closing.
Window handle suitable for type C001, C002, C003, C004, C005, C006, C007, C008, C009, C010, C012, C013, C014, C015, C016, C017, P001, P002, P004, P005, P006, P007, P008, P009, P010.
We recommend reading the PDF "
Nodi Tipo Battente C ", which describes the nodes and the series/systems to which this article is adapted (it can be found in the "Documents" section of the product sheet).
Supernova handle Giesse - Finishes:
Silver, Bronze, White Ral 9010, Ivory Ral 1013, Black Ral 9005.
Giesse Supernova Cremonese - Technical Features:
As for the Giesse Euro cremone bolts, of which it takes up the refined design, the use of quality die-cast materials together with the high reliability of the Giesse painting system, give the Supernova cremone bolts a high quality of the surfaces and strong resistance to external agents.

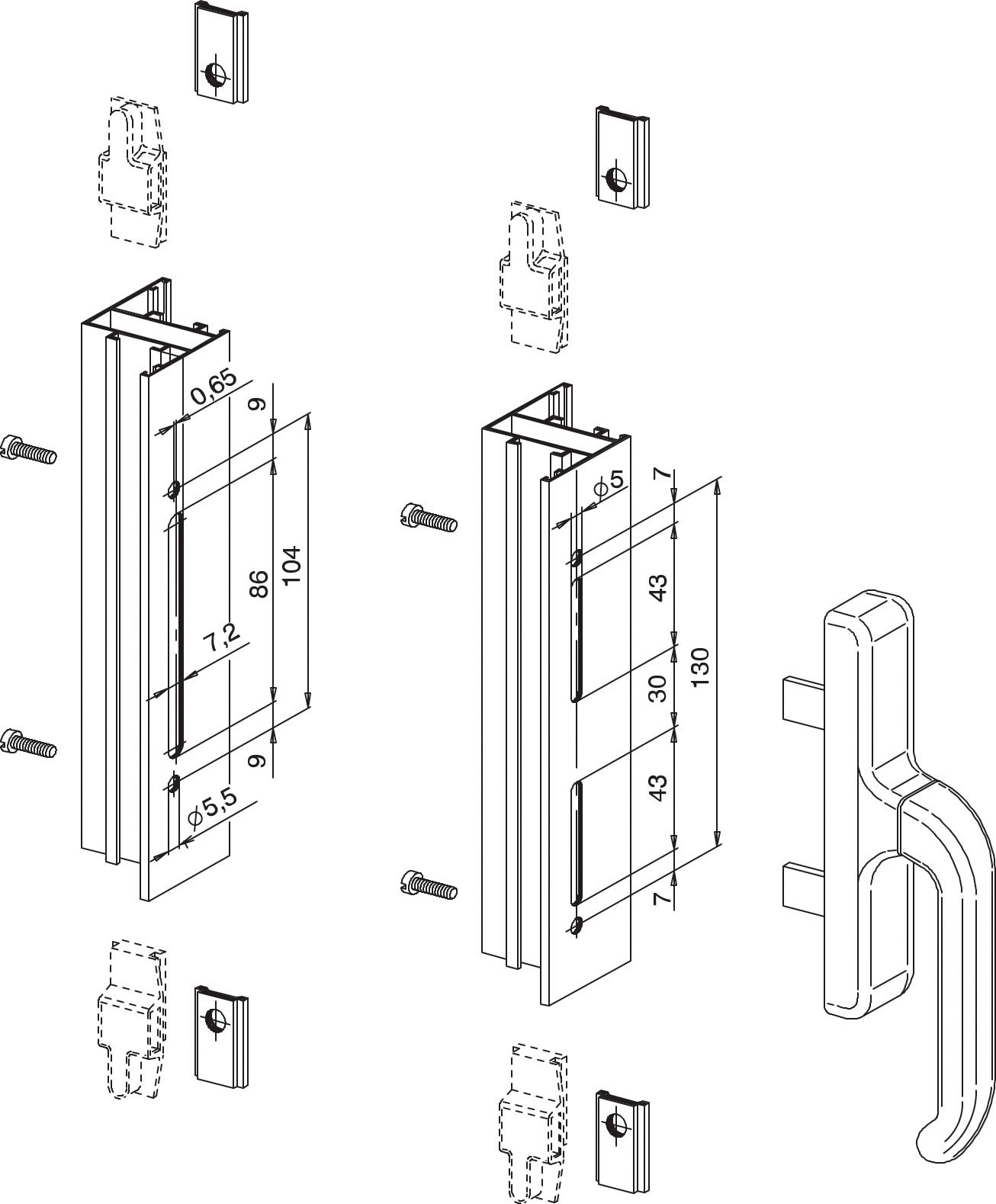

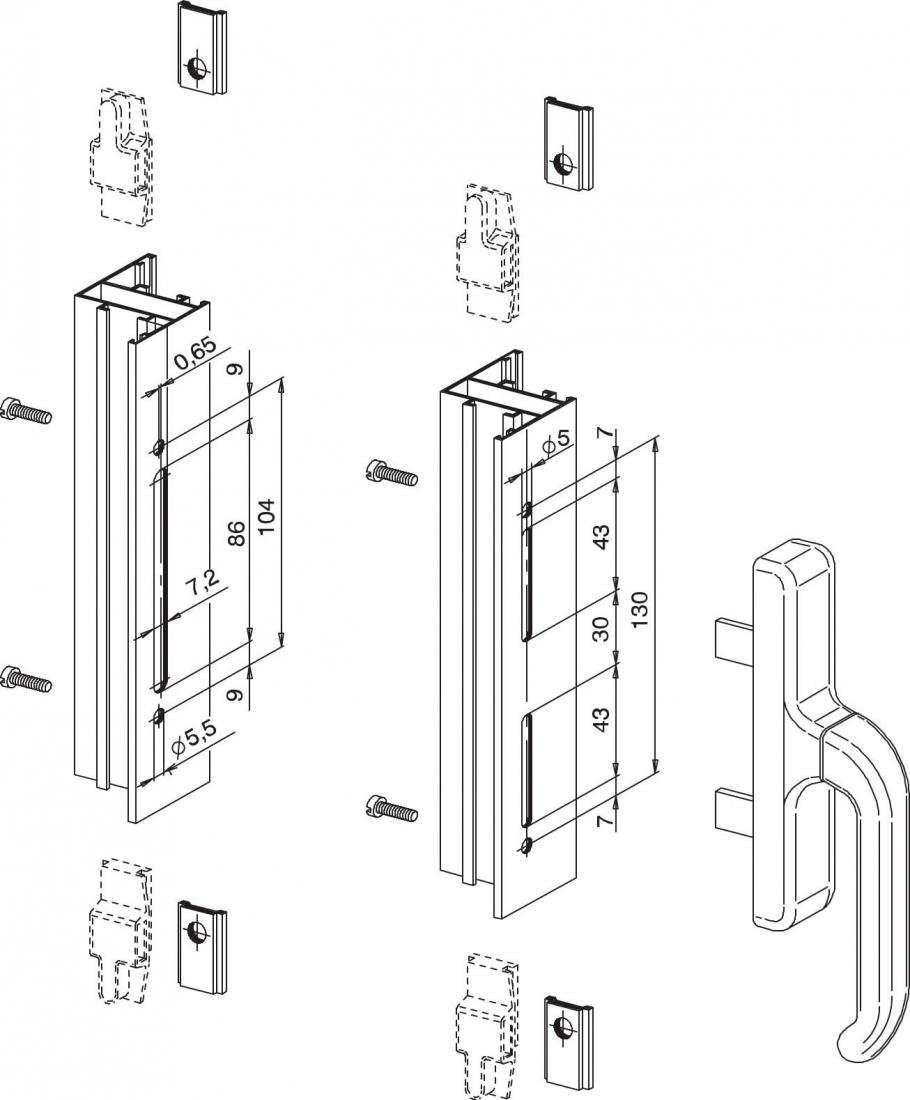

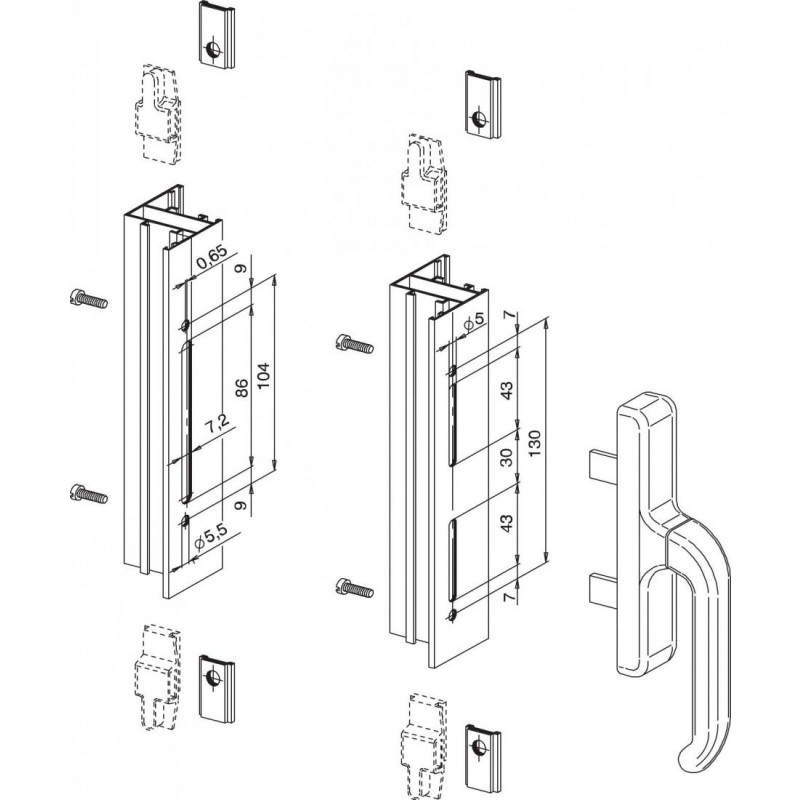

The Supernova cremone bolt is supplied right-hand, with a 130mm fixing distance and takes up the concept of unification by also adopting the standard Euro 104mm machining.
Supernova Giesse - Materials:
- Die-cast aluminum handle;
- Case, gear, racks and sliders in die-cast zamak;
- Stainless steel screws.
SUPPLIED WITH: 2 cap screws M4x10.
NOTE: more information on the Supernova Giesse product is contained in the PDF attached to the product sheet (you can download it by clicking on "Documents").
