Vimar Installation Support - Adapters for DIN rail (60715 TH35)
Support for DIN rail installation (60715 TH35) of Eikon, Arké and Plana luminaires, available in various modules (1, 2 or 3 modules).

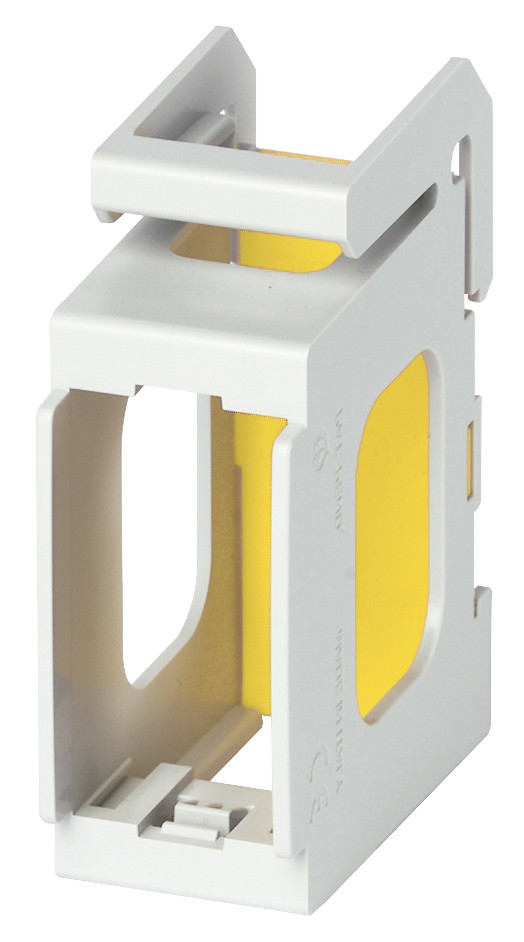

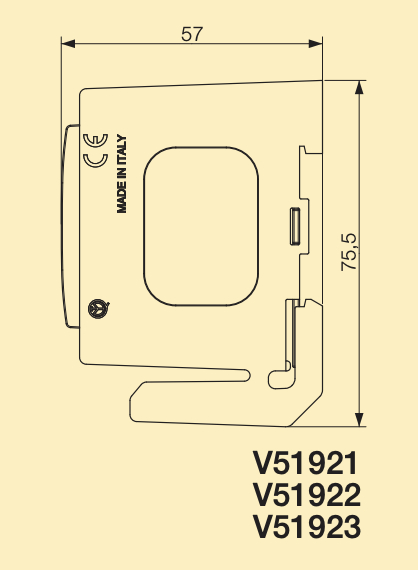

- Item V51921 : 1-module support for installation on DIN rail (60715 TH35), occupies 1.5 modules of 17.5 mm, gray RAL 7035. Supplied with protection diaphragm;

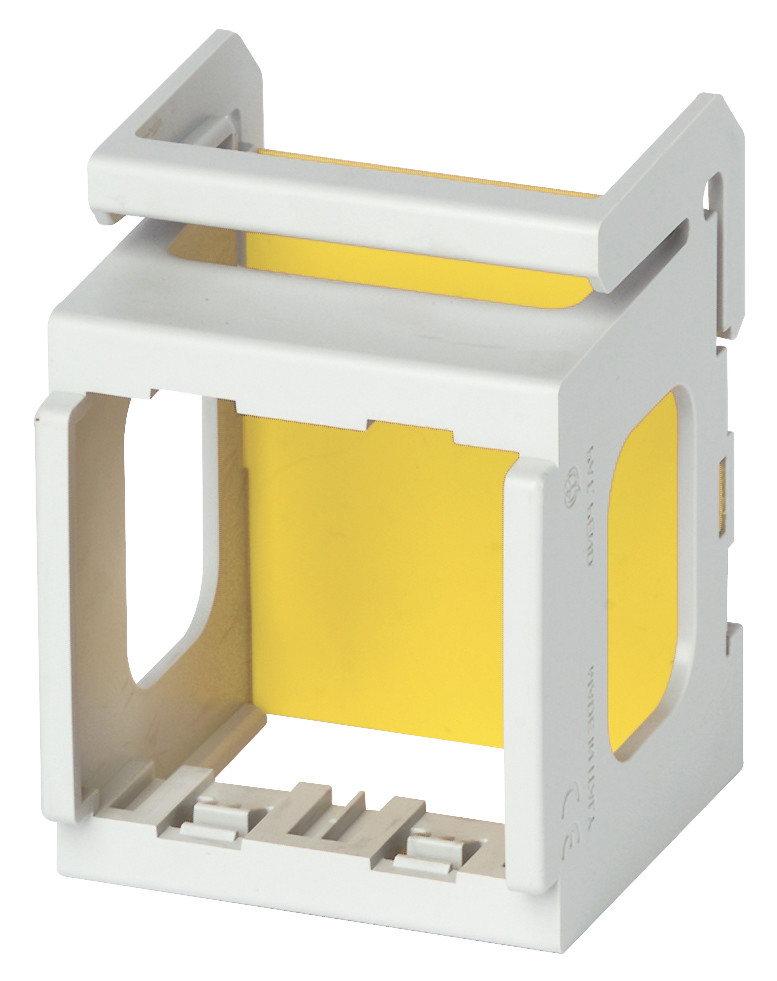

- Item V51922 : 2-module support for installation on DIN rail (60715 TH35), occupies 3 modules of 17.5 mm, gray RAL 7035. Supplied with protection diaphragm;

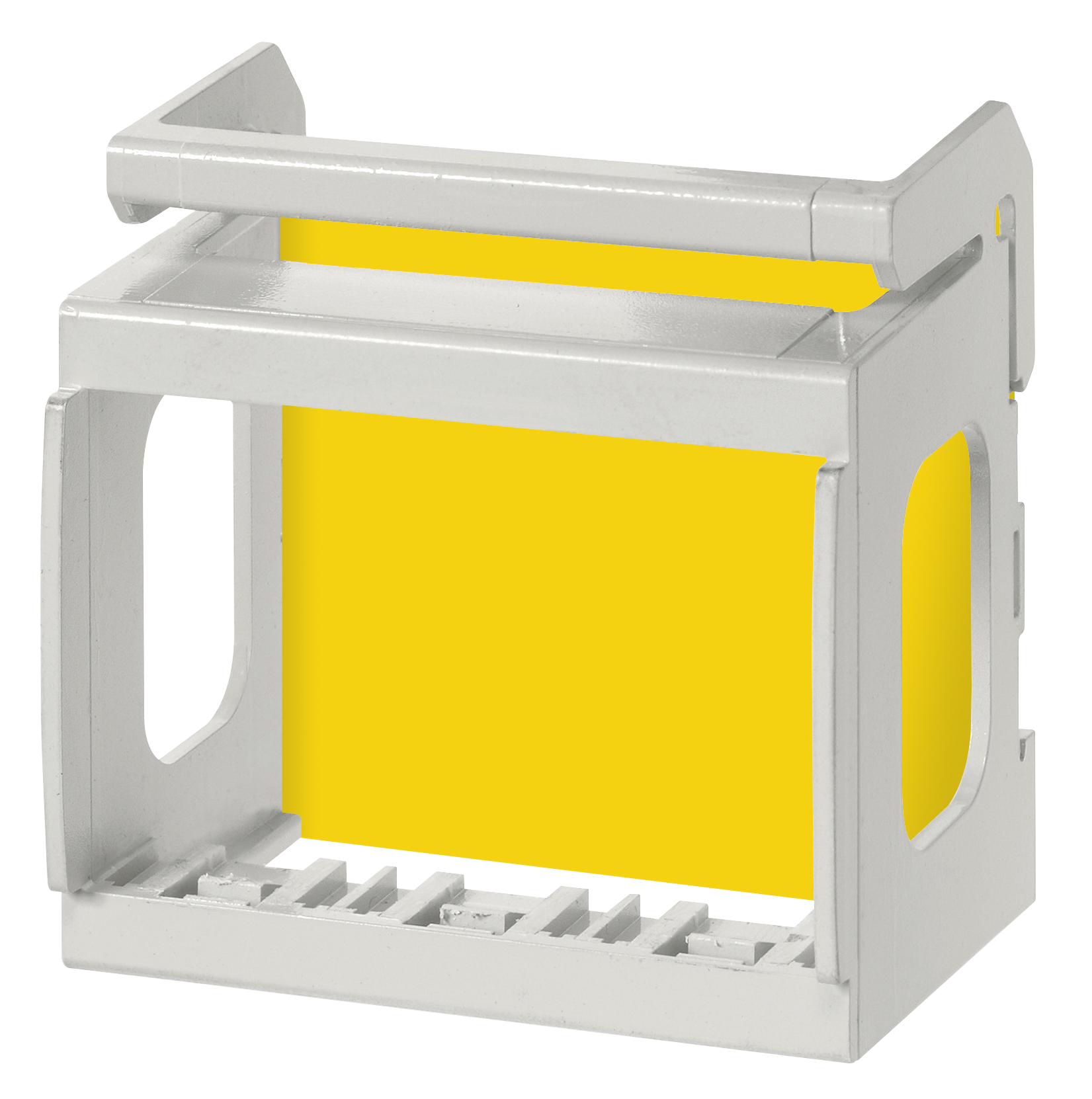

- Item V51923 : 3-module support for installation on DIN rail (60715 TH35), occupies 4 modules of 17.5 mm, gray RAL 7035. Supplied with protection diaphragm.
DIN rail support technical data for Eikon, Arké and Plana civil series
- Group: low voltage electrical appliances;
- Class: DIN rail adapter;
- Type of fixing: 35 mm blind bar;
- Guide adapter shape: straight;
- Material: plastic.
