Hannoband BG1 and BG1 XL: Thermo expandable tape to seal the space between the frame and the counterframe of the window

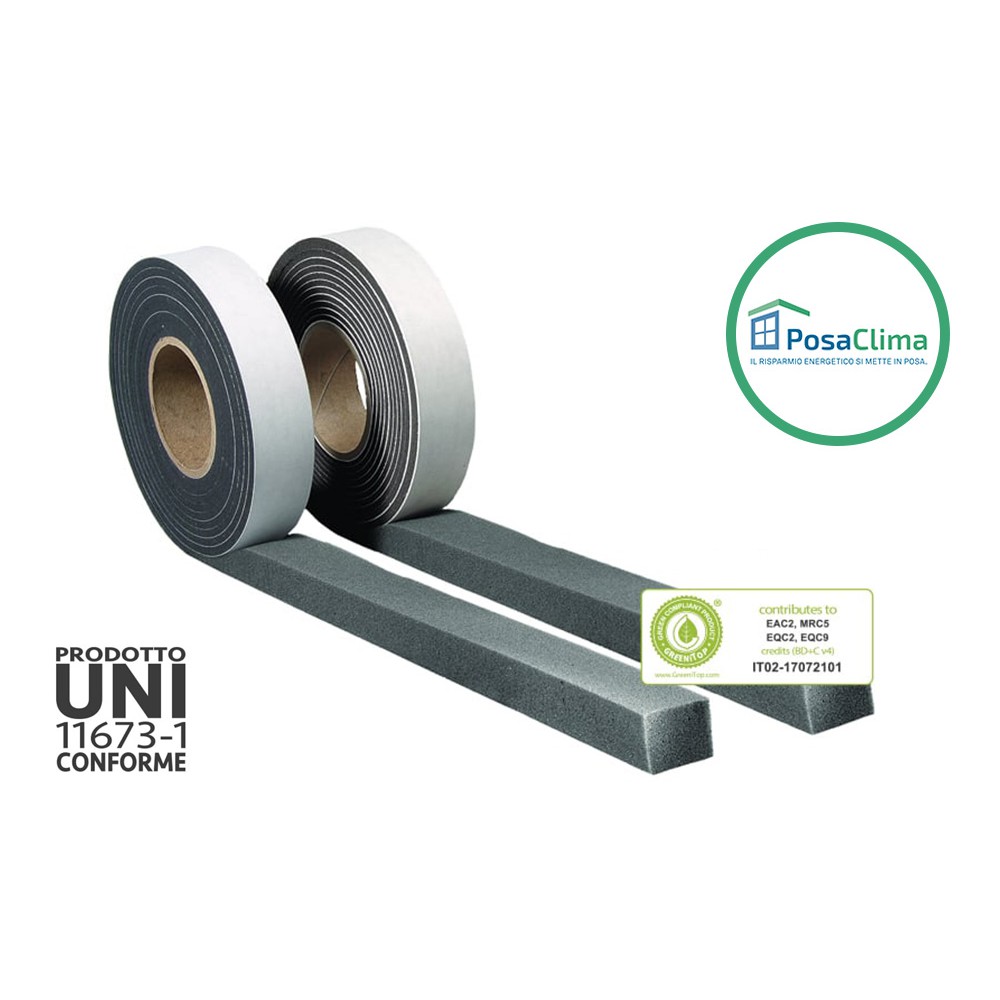

Hannoband BG1 and BG1 XL thermo-expanding tape in compressed polyether foam
Thermo-expandable tape in compressed polyether foam , impregnated with water-repellent acrylic resin and with other substances capable of modulating the expansion, specifically designed for sealing the jamb between the window frame and the counter frame.
There are
two types of packaging that differ in length and price: it is advisable to always use the BG1 XL version (ie the packaging with the longest belt) as it is economically more convenient. Hannoband BG1 tape represents the highest quality in terms of thermo-expanding tape to seal the rebate.
How does Hannoband®-BG1-BG1 XL PosaClima insulating tape work?
Hannoband®-BG1-BG1 XL is a universal thermo-expanding tape of the highest quality designed for waterproofing joints in building constructions. The specific fields of application are the sealing of windows on the outside thanks to its resistance to driving rain even with wind pressure> = 600Pa. Hannoband BG1 tape is the only tape on the market to have successfully passed the extremely difficult American "Hurricane Test" reserved for curtain walls: in the test, the BG1 tape withstood driving rain with a pressure of 9000 Pa. Since BG1 tape it is resistant to ultraviolet rays, when used for the formation of the external joint it does not require trimming or over-application of silicone or acrylic sealants.
These window insulation tapes are ideal for:
- seal irregular joints ;
- when you want to have water, air and sound insulation;
- at the same time a vapor permeability.
Tips for using Hannoband tape
- All tapes are coded with three numbers that indicate measures expressed in millimeters: eg 15 / 3-7;
- The first number (15 mm) indicates the width of the tape;
- The second number (mm 3) indicates the initial thickness of the tape;
- The third number (mm 7) indicates the maximum expansion for which the nominal performance is guaranteed.

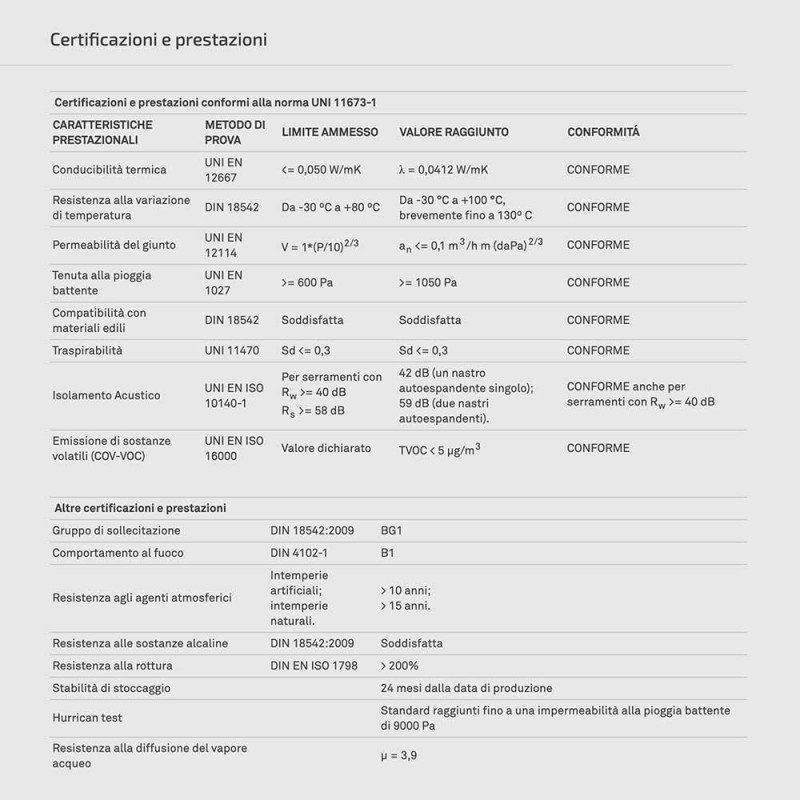

Hannoband tape performance and certifications
- Thermal conductivity (UNI EN 12667): λ = 0.0412 W / mK
- Resistance to temperature variation (DIN 18542): From -30 ° C to +100 ° C, briefly up to 130º C COMPLIANT
- Permeability of the joint (UNI EN 12114): an <= 0.1 m3 / hm (daPa) 2/3
- Resistance to driving rain (UNI EN 1027):> = 1050 Pa
- Compatibility with building materials (DIN 18542): Satisfied
- Breathability (UNI 11470): Sd <= 0.3
- Acoustic insulation (UNI EN ISO 10140-1): 42 dB (a single self-expanding tape) - 59 dB (two self-expanding tapes)
- Emission of volatile substances (VOC-VOC) (UNI EN ISO 16000): TVOC <5 µg / m3
- Stress group (DIN 18542: 2009): BG1
- Reaction to fire (DIN 4102-1): B1
- Resistance to atmospheric agents : Artificial weather> 10 years - natural weather> 15 years
- Resistance to alkaline substances (DIN 18542: 2009): Satisfied
- Breaking strength (DIN EN ISO 1798):> 200%
- Storage stability : 24 months from the production date
- Hurrican test : Standards achieved up to a water resistance of 9000 Pa
- Resistance to water vapor diffusion : µ = 3.9
Videotutorial: see how Hannoband®-BG1-BG1 XL PosaClima is used
PosaClima: accessories for thermal counterframes of doors and windows
PosaClima is the Made in Italy system for the installation of high energy efficiency windows . The advantages of this system range from high thermal and acoustic efficiency to flexibility in the construction phase. Discover all the PosaClima accessories in the Windowo online shop.
