Electric Chain Actuator C130 24V Topp 1 Push Point Stroke 36cm
Stroke 36cm - Application on Projecting or Vasistas Windows, Domes or Skylights

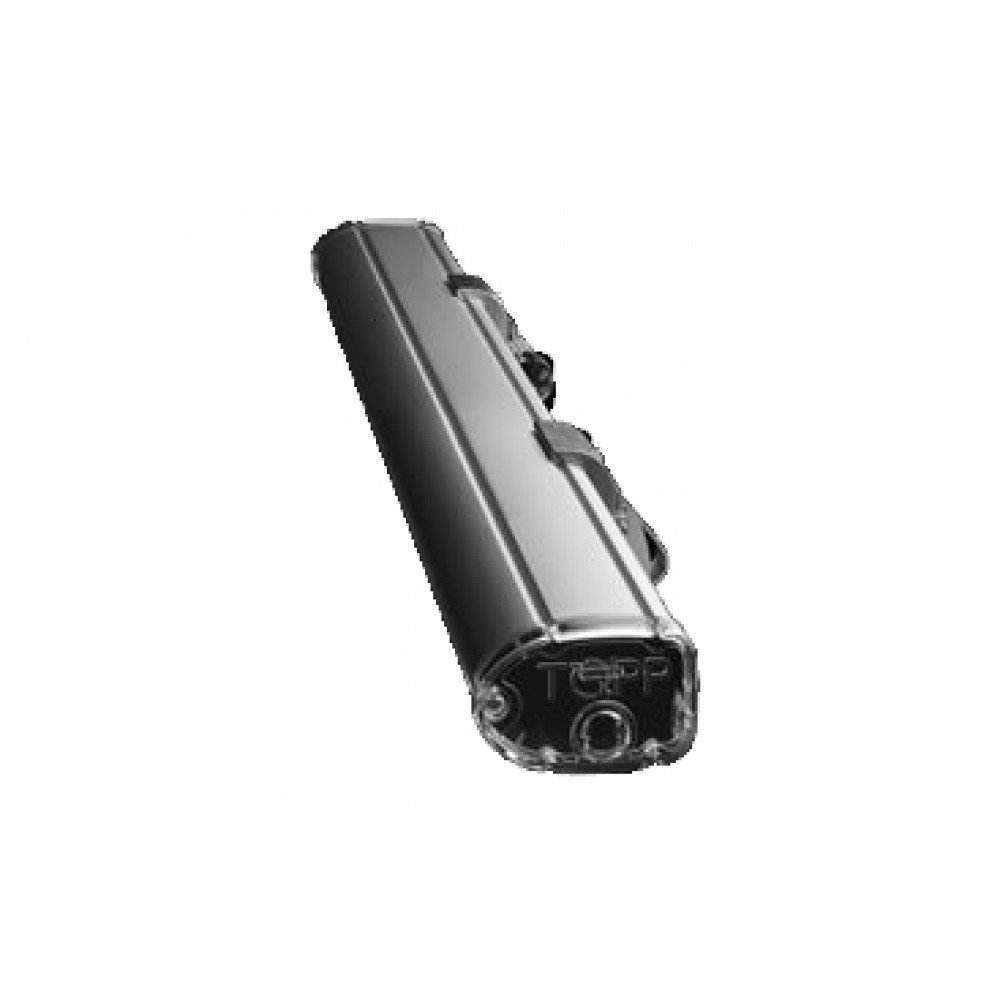

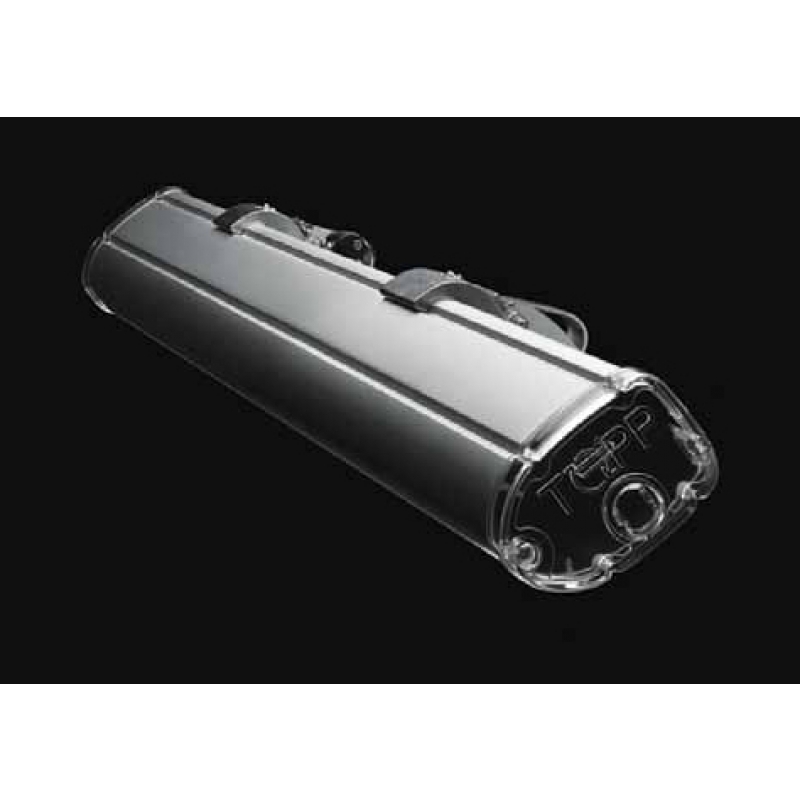

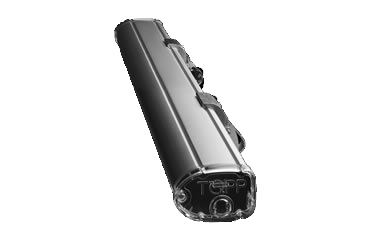

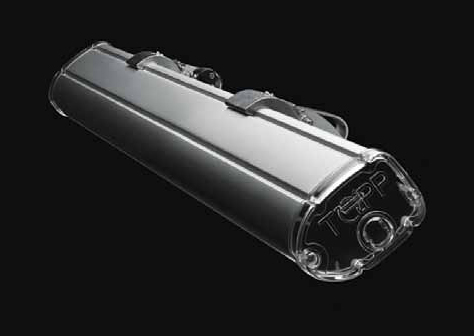

Topp electric actuator model C130 24V cc with double link articulated chain, housed in elegant extruded aluminium, complete with support and accessories for outward opening.
- 230V 24V operation.
- Maximum applicable load 300N.
- Quick coupling attachment to the frame.
- Stroke 360mm.
- C130 Topp actuator length: from 60cm to 90cm or from 90cm to 120cm (optional).
- CE marked device.
Technical characteristics C130 24V Topp
- Supply voltage: min21V - max28V dc;
- Maximum applicable thrust load: 300N;
- Maximum applicable load in traction: 200N;
- Stroke: 360mm;
- Absorption: 0.43A;
- No-load translation speed: 8mm/s;
- Duration of idle run: 48s;
- Type of service: S2 of 4min;
- Operating temperature: - 5 / + 50 °C;
- Degree of protection for electrical devices: IP30;
- Adjustment of the attachment to the frame: not necessary;
- Parallel connection of 2 or more actuators: yes;
- Chain position control: yes;
- Limit switch: electronic in opening, amperometric absorption in closing.
Applications: top-hung, top-hung windows, domes and skylights.

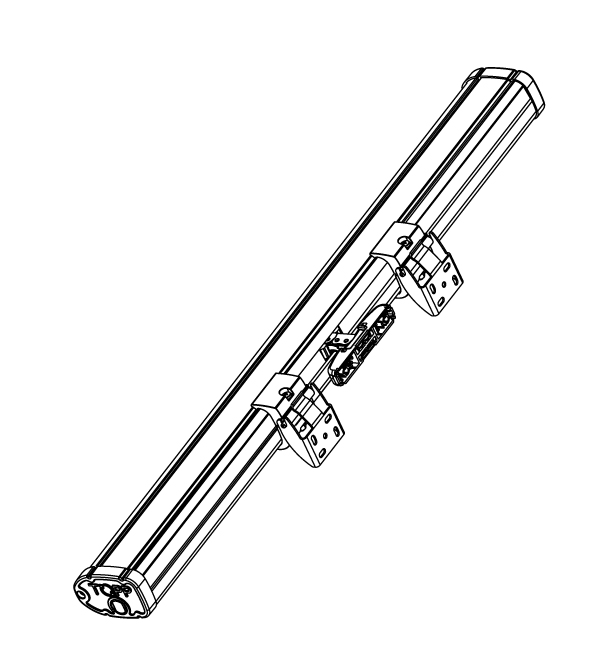

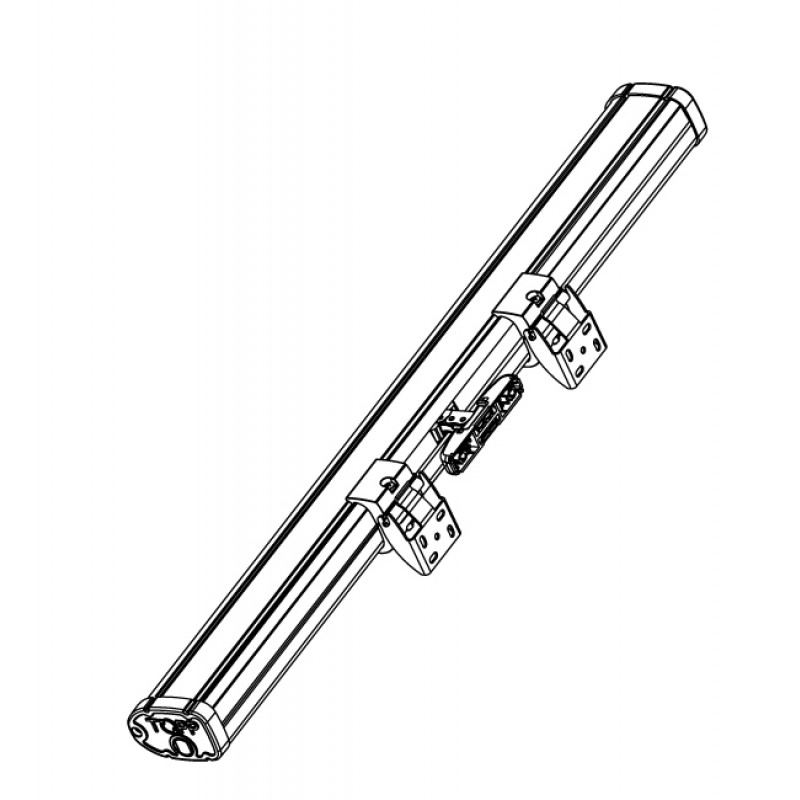

Included in the package: chain actuator, front protruding brackets, protruding connection clamps, ARS quick connection to the window.
Why choose the C130 Topp electric actuator?
- Customization of the length of the extrusion according to the width of the window (international patent).
- Adjustable tilting brackets on the length of the extrusion.
- Cable supplied with the possibility of output from both sides.
- Quick hooking and unhooking system of the chain to the window.
- Innovative design.
C130 24V standard 1 push point, Stroke 36cm
Application Protrude
| Code |
Description |
| 3A6#000002062 |
Chain actuator C130 24V
Length from 60cm to 90cm |
| 3A6#000002064 |
Chain actuator C130 24V
Length from 90cm to 120cm |
Topp technologies for freedom of movement
For more than 20 years, Topp has been offering a wide range of simple and functional systems for the automation of doors and windows. The innumerable international patents, indispensable tools for protecting Topp solutions, give life to the product known throughout the world as "Made in Italy".
Try the great quality of Made in Italy products
Each device is individually tested to maintain Topp's commitment to quality.
