Vertical Security Solenoid Lock Opera with 8mm Handle Square

Opera
Brands: Opera
Code: 25808
-20%
£ 318,89 £ 398,62
Prices excluding VAT
Vertical safety solenoid lock for single door. Equipped with 8mm handle follower.
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

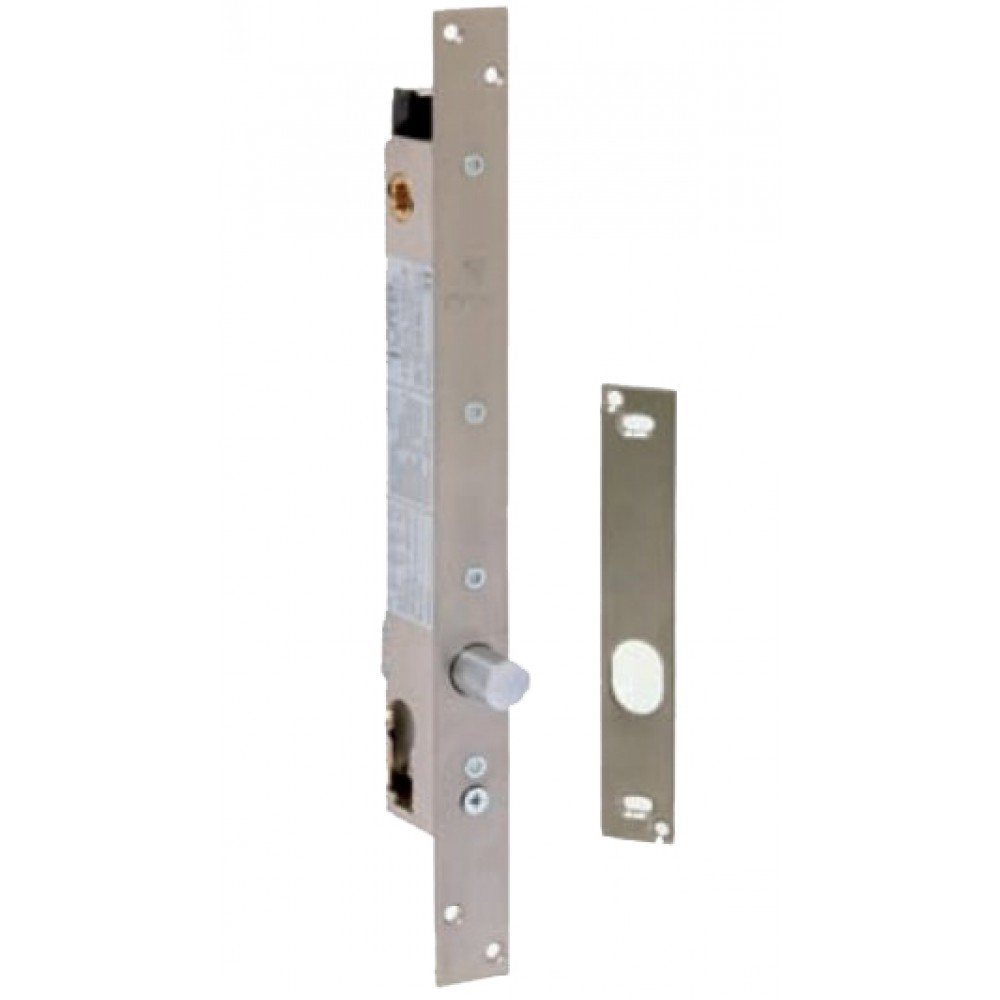

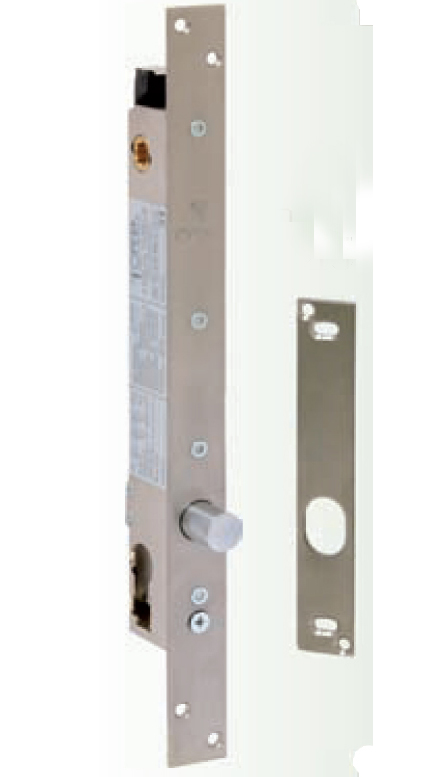

Vertical Safety Solenoid Lock Art.25808 Opera with 8mm Handle Square

Security solenoid lock for single door. With 8mm handle follower.
Deadbolt Closed   in the absence of current.
The package includes: electropiston, counterplate, connector and cylinder screw.
The package does not include the power supply.


Opera electro lock VARIANTS (choose between):

  • Standard version : normal and without modifications;
  • XL version : with +5mm extended deadbolt;
  • SA version : with alignment anti-bounce ball mounted directly on the counterplate, with front ABS slide.

Technical features Vertical Safety Solenoid Lock:
  • Mechanical opening with European cylinder (the cylinder with internal knob cannot be used);
  • Front in stainless steel 320 x 25 x 3mm;
  • 150 x 25 x 3mm stainless steel counterplate with alignment magnet;
  • Rotating deadbolt in cut-resistant tempered steel with mechanical block in the closed position;
  • Deadbolt dimensions: 20mm extension (25mm in the XL version), 16mm diameter;
  • Power supply : 12/24 Vdc;
  • Absorbed current: 2.5/3 A peak - 130/230 mA maintenance with electronic control;
  • Internal microprocessor control electronics;
  • Connection via quick fit connector;
  • Arrangement for interlocking connection between 2 or more doors;
  • NO Opening command;
  • C./NO/NC contact for deadbolt position;
  • Opto-electronic control of bolt position;
  • Internal magnetic sensor for leaf position;
  • Buttons for monitoring and adjusting the closing times from 0-5 sec. when the door is approached and from 0-60 sec. if the sash is not opened;
  • The timings can be disengaged for use of the electro lock with external management electronics;

Operation: vertical.

Available backsets: 25-30-35mm.

NOTE: Complete your electro lock by evaluating the purchase of the Switching Power Supply Art.05320 Opera, available on Windowo in the same section.
It is also possible to purchase the Concealed Cable Fairlead Art.08600 separately, for the direct passage of the wires between the door and the frame.
