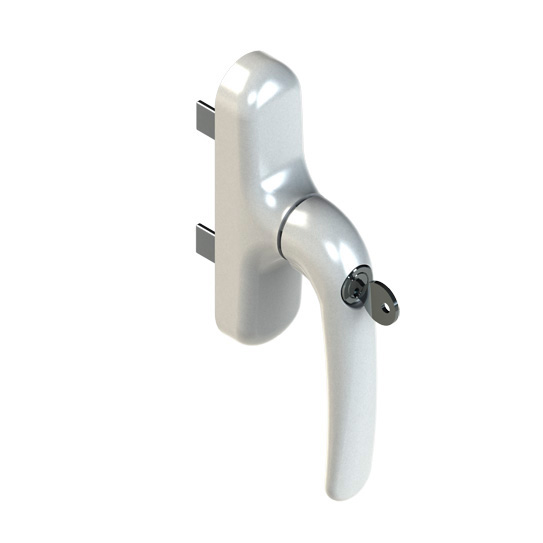

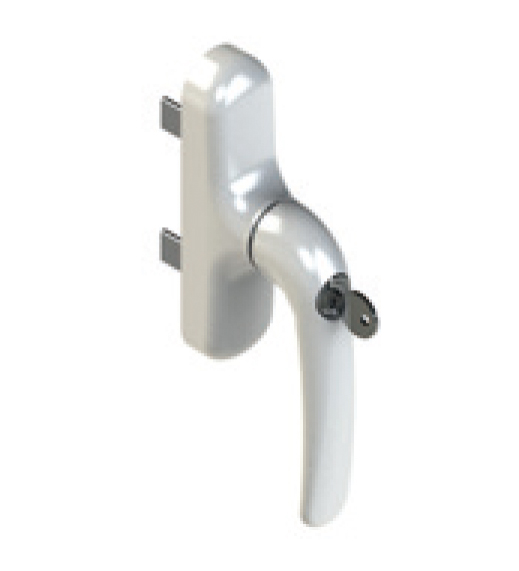

Window Handle - Cremone Bolt - Giesse Prima Key - With Key - Ambidextrous Bidirectional
Giesse Prima Key cremone bolt for windows with swing movement
Giesse Prima Key cremone bolt with key , version
for sash , suitable for nodes of the type C001, C002, C003, C004, C005, C006, C007, C008, C009, C010, C012, C013, C014, C015, C016, C017, P001, P002, P004, P005, P006, P007, P008, P009, P010.
We recommend reading the PDF "Nodes Type Battente C", which describes the nodes and series/systems to which this article is adapted (it can be found in the "Documents" section of the product sheet).
FUNCTIONS Cremone bolt Giesse Prima Key for windows:
- Ambidextrous cremone bolt with handle lockable by key , made for open joint systems, with 90° rotation and positioning click on opening and closing.
- It maintains the functional characteristics of the "Euro" cremone bolt with a different aesthetic line.
FINISHES:
Silver, Bronze, White Ral 9010, Ivory Ral 1013, Black Ral 9005.
TECHNICAL SPECIFICATIONS Cremonese Giesse Prima Key:
The use of quality die-cast materials and the adoption of the Giesse painting system guarantee high mechanical qualities as well as uniformity of colors and strong resistance to abrasion.

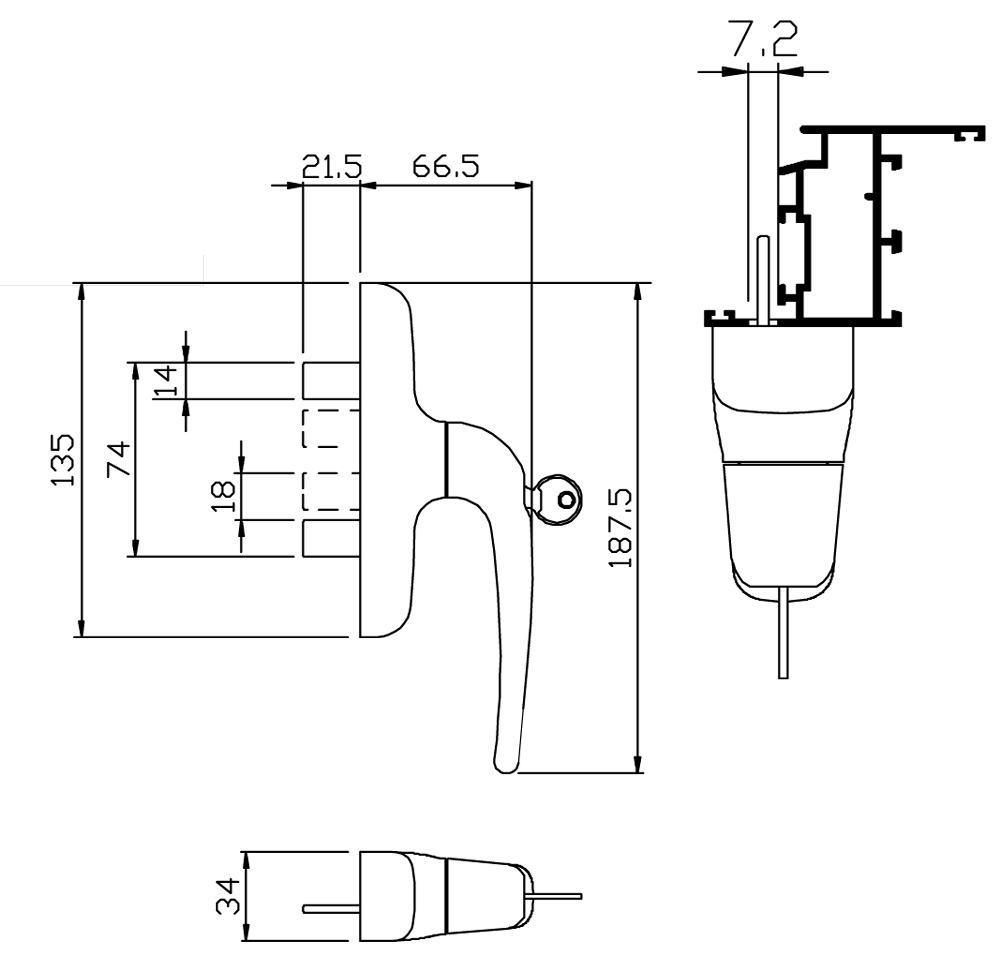

The Euro cremone bolt has 104mm and 84mm center distances, but can easily be adapted for 98mm center distances.

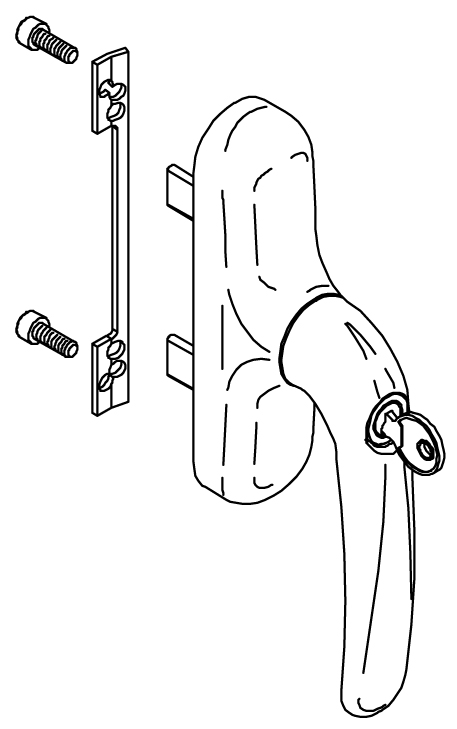

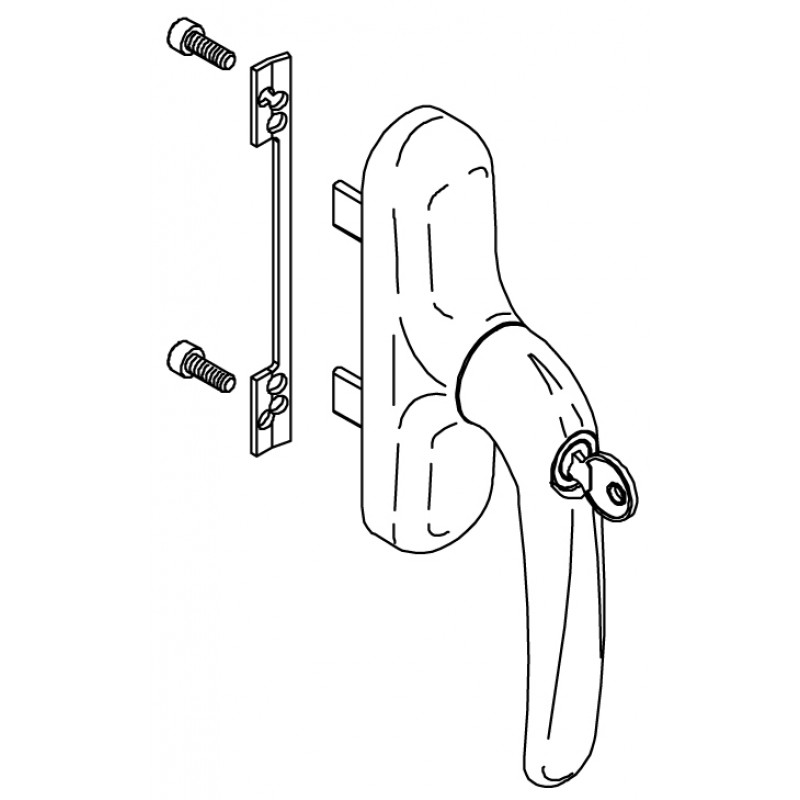

EQUIPMENT:
- 1 fixing plate
- 2 TCCE M5x14 screws
- 2 keys
MATERIALS:
- Die-cast aluminum handle;
- Case, gear;
- Racks and slides in die-cast zamak;
- Nickel-plated brass cylinder;
- Inner sheath and base in Hostaform;
- Steel spring;
- Screw and fixing plate in stainless steel.
NOTE: More information on the product is contained in the PDF attached to the product sheet.
