Arm Automation for Shutters S TEL Chiaroscuro Single Leaf - Made in Italy
S TEL Single Leaf 230Vac Chiaroscuro is an arm automation for swing shutters.
Automation version for shutters: L= 60 - 80 cm; Push right or left (your choice).
The S TEL Single Leaf 230Vac Chiaroscuro system represents the ideal solution for those who want to
modernize their swing shutters with an advanced and reliable automation system. This device, designed to offer maximum convenience and efficiency, is the perfect option for automating the opening and closing of shutters with a simple gesture.
Features of the arm automation for S TEL Chiaroscuro Single Leaf shutters
- Compatibility: ideal for swing shutters with dimensions ranging from 60 to 80 cm, ensuring perfect adaptability to different housing needs;
- Installation versatility: with the possibility of choosing the direction of push, right or left, the system easily adapts to the specific configuration of your windows, ensuring a tailor-made installation;
- Arm technology: thanks to its innovative arm mechanism, the S TEL Single Door 230Vac Chiaroscuro system guarantees smooth and safe movement of the shutters, significantly improving the daily use experience.
Designed to integrate harmoniously with the aesthetics of your shutters, the S TEL Single Leaf 230Vac Chiaroscuro automation system is the right choice for those looking for a
practical, long-lasting and easy-to-use solution for their home.

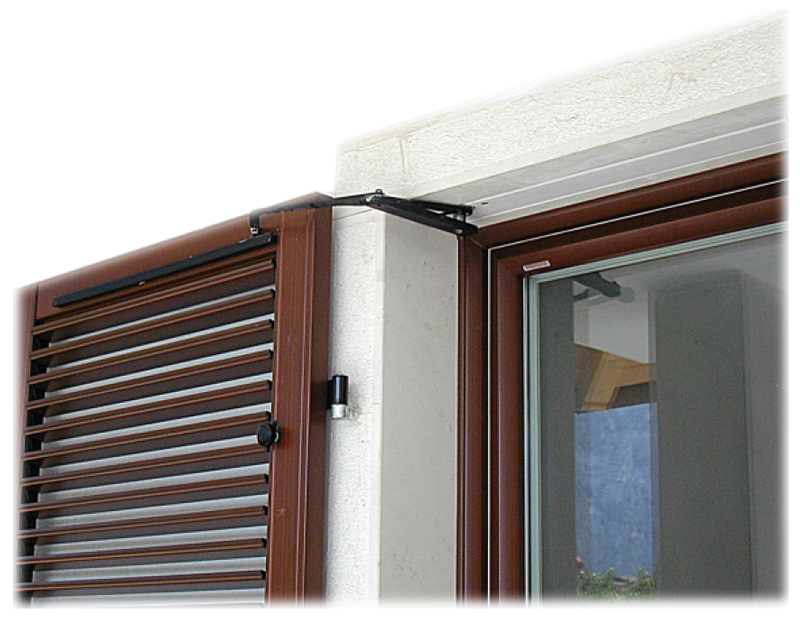

Application for shutter with straight strip and brick-in hinge
Kits are available that allow the application of S TEL on Vicenza style shutters (book door kit, code AC.LIBRO) and Paduan style shutters (Paduan shutter kit, code AC.PD). These kits can be purchased separately on Windowo.
Simple and versatile: the ideal solution for the comfort and practicality of life at home.

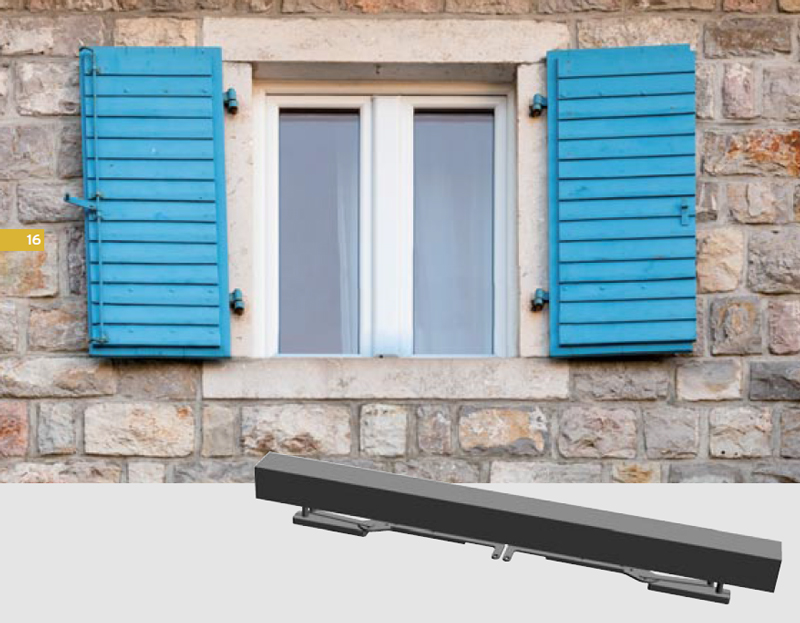

Automation for swing shutter Chiaroscuro S TEL
- Convenient: no cold, rain and wind in winter or heat and mosquitoes in summer, the doors close at the push of a button inside the house without opening the windows.
- Ultra compact: recommended for installations with limited space.
- Safe: thanks to the irreversible motor.
- Practical: designed to fit perfectly into systems with aluminum cover and rail.
- Automatic control unit: automatic movement control unit that can be fully integrated with all home automation systems; it complies with safety requirements in the event of an impact and allows movement with partially closed or intermediate stop scenarios with a simple click.
| Model |
S TEL 1 door
Left 60-80 cm |
S TEL 1 door
Right 60-80 cm |
| Code |
TL.1A.L |
TL.1A.R |
| Motor power supply |
230 Vac |
230 Vac |
| Max door weight |
50 kg |
50 kg |
| Max door size |
60 - 80 cm |
60 - 80 cm |
| Max door surface |
1.5 m² |
1.5 m² |
| Engine power |
60W |
60W |
| Average absorption |
0.8A |
0.8A |
| Couple |
25 Nm |
25 Nm |
| Working cycle |
10 cycles/hour |
10 cycles/hour |
| Noise |
50 db |
50 db |
| Degree of protection |
IP 32 |
IP 32 |
| Electric lock |
Yes |
Yes |
We recommend reading the
instruction manual which you can find in PDF format by clicking on "Documents" at the top of this page.
Italian company Chiaroscuro: innovation and sustainability in shutter motors
For years the
Italian company Chiaroscuro has been at the forefront in the development of automated solutions for home automation, with a constant commitment to innovation and the adoption of the most advanced technologies on the market.
Chiaroscuro's commitment goes beyond technology: the company is deeply dedicated to ecology, favoring the use of
eco-sustainable materials and environmentally friendly manufacturing methods.
