Kato 305/RWA Syncro Nekos 24V 300N - Pair of Chain Actuators for Coordinated Synchronization - Stroke up to 500mm
ATTENTION: The price includes two actuators.
Kato 305/RWA Syncro Nekos 24V: in harmony
The
Syncro Nekos version, based on communication between the actuators through a direct connection between them, allows instant control of the force, speed and resistance of each one by reading the work of the individual motors via encoder. The continuous exchange of information allows the actuators to open and close in synchrony.
Syncro3 Nekos is the evolution of the first patent which provided for the installation and wiring of up to two motors connected directly to each other. Today the Syncro3 software allows up to 8 engines to be connected directly to each other without the aid of external synchronization control units.
The number of actuators to be provided on the window in Syncro3 function varies according to the dimensions, weights and types of the window itself. For a width greater than 1200 mm, the use of two motors is already recommended, this to allow correct movement and perimeter sealing of the frame in the closed position. It is recommended to use an additional actuator every 1200 mm of exceeding width.
Kato 305/RWA Nekos is a strong and powerful window actuator
Kato 305/RWA Nekos has brilliantly passed the toughest heat and fire resistance tests as indicated by the EN 12101-2:2003-09 standard, obtaining the B 300 classification with certificate no. 13-000921 at the IFT test institute in Rosenheim year 2013.
- It is a guarantee of safety, quality, efficiency, reliability, constructive simplicity; a pleasant design designed to integrate into an avant-garde window;
- It has a new electronic technology based on the use of a microprocessor for position control and management of each work phase;
- The body is in die-cast aluminum and the brackets are in zinc alloy (zamak);
- It is easy to install, it is mounted with quick coupling in the supports, without screws or fasteners (Nekos patented system); another Nekos patent provides for the quick release from the window also for easy cleaning.
Strokes selectable by dip-switch.
Features Pair of Kato 305/RWA Syncro Nekos 24V Chain Actuators
- Linear electric actuator with double-row four-link articulated chain, enclosed in a suitable aluminum container, suitable for moving top-hung windows, bottom-hung windows, domes and dormer windows.
- Push and pull power of 300 N.
- Supplied complete with universal tilting support brackets with quick coupling and without screws (patented).
- Electronic limit switch in opening with three strokes (200 - 300 - 500 mm) selectable at any time by dip-switch, with power absorption in closing and as overload protection.
- Soft Stop and Relax function. Can be connected in parallel. Compliant with Directives 2004/108
- CE (EMC Directive) and 2006/95 CE (LV Directive).

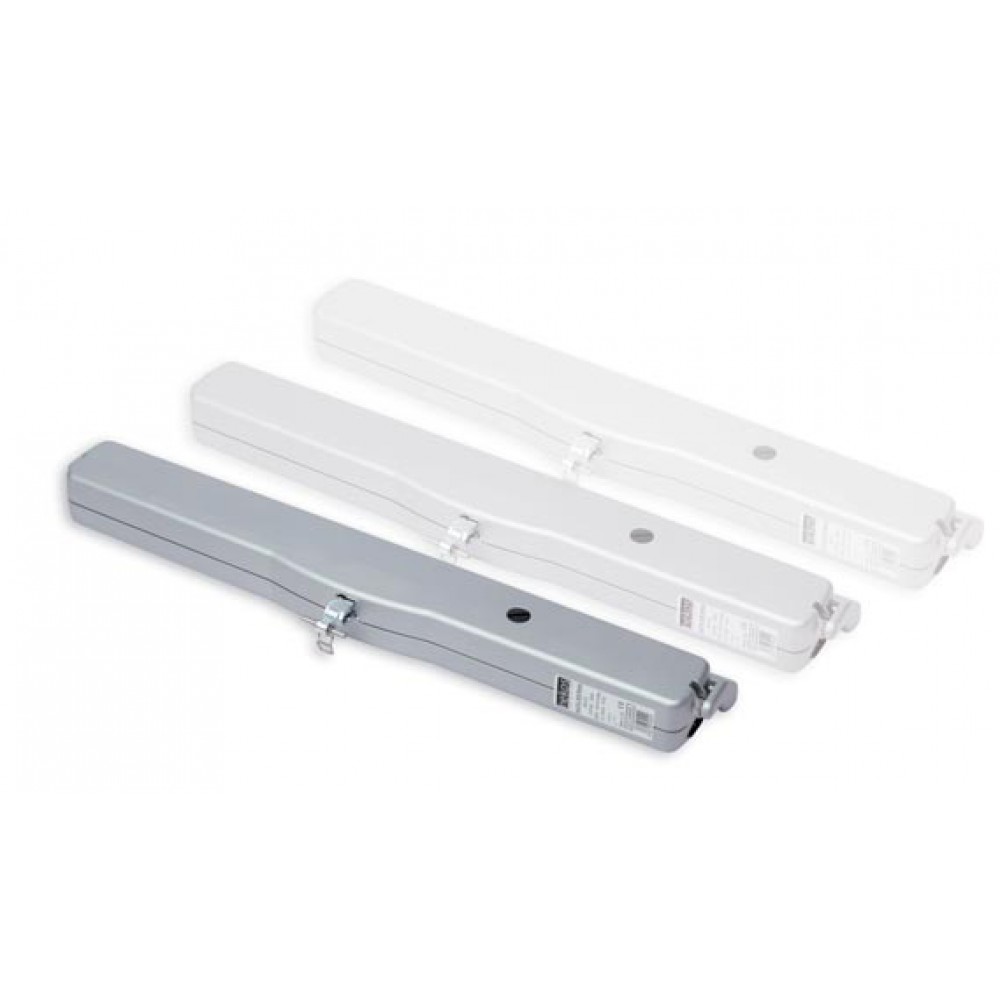

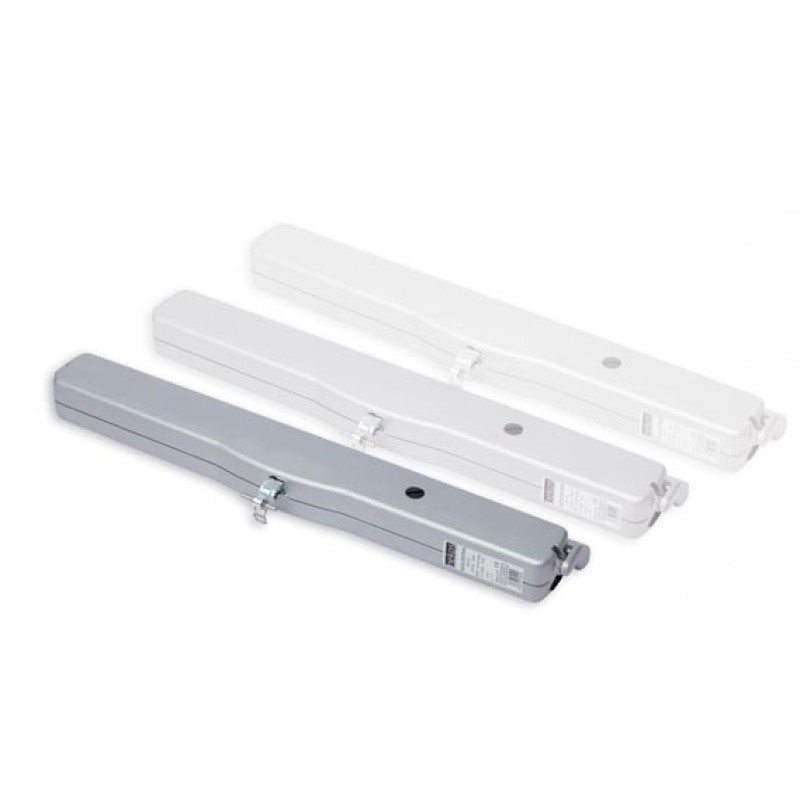

- Standard colours: Black (RAL9005) with black cable, White (RAL9010) and Gray (RAL9006) with white cables.
The actuator in the SYNCRO version is equipped with the new system patented by NEKOS for the coordinated synchronization of the chain movement.
The electronic speed control is fully automatic and does not require any external control unit; just connect the RED and WHITE cables already present in the power cable.
IMPORTANT: THE CONNECTION OF THE TWO CABLES (WHITE AND RED) MUST BE PERFORMED, BEFORE ANY MANEUVER OF THE ACTUATORS, POSSIBLY WITH THE CHAINS COMPLETELY RETURNED; OTHERWISE THERE MAY BE COMMUNICATION PROBLEMS BETWEEN THE TWO ACTUATORS.
When mounting the Syncro Nekos version on a window?
The actuator in the SYNCRO version is mounted
when two attachment points are needed because the window is particularly heavy or wide (approximately from 1.2m to 3m)
and a single actuator does not allow perfect closure of the window .
It should be remembered that the force exerted individually by the actuators is the same as that of a similar actuator; by mounting two actuators, the force exerted on the window is therefore double. The movement of the window takes place in a uniform, synchronized and coordinated way without interruptions and/or speed variations of the two actuators.
If one of the actuators does not work due to any mechanical or electrical impediment, the other also stops, thus guaranteeing the integrity of the window.
Technical data KATO 305 RWA 24V Syncro
- Model: KATO 305 RWA 24V Syncro;
- Synchronized operation: YES;
- Push and pull force: 300 N;
- Strokes (select at any time): 200, 300, 400, 500mm;
- Supply voltage 24V DC;
- Current draw at rated load: 0.910 A;
- Power consumption at nominal load: 20 W;
- No-load travel speed: 8.9 mm/s;
- Duration of idle stroke (500 mm): 56 s;
- Double electrical insulation: YES;
- Service type: S2 of 3 min;
- Operating temperature: - 5 + 65 ºC;
- Degree of protection for electrical devices: IP32;
- Adjustment of the attachment to the frame: Self-determination of the position;
- Parallel power supply of two or more motors: YES;
- Static holding force: 1700N;
- Opening limit switch: Electronic;
- Closing limit switch: Absorption of power;
- Power cord length: 2m;
- Dimensions: 456x60x43mm;
- Appliance weight: 2.23 kg.
Each pack contains:
• Electric actuator according to construction at 110÷230VAC 50/60Hz.
• 2 (2.5) meter (±5%) power cord with molded plug connector.
• Standard support brackets (A).
• Adhesive drilling template.
• Instruction manual.
• Bracket for bottom hung attachment (C) (supplied separately only on request).
• Bracket for projecting connection (D). (supplied separately only on request).
Check that the appliance has the same type of electrical power supply as that available for connection, checking the data shown on the label applied to the actuator.
- Nekos products are built in a workmanlike manner in terms of safety, in compliance with the provisions of current laws.
- Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals or property.
- The products that fall within the field of application of the EEC directives comply with the essential requirements contained therein.
- CE marked, they can be placed on the market and put into service in the European Union without further formalities.
For further information on this product (use, safety, cleaning, guarantee, certificate of conformity and much more) we recommend reading the Instructions (PDF downloadable in "Documents").
